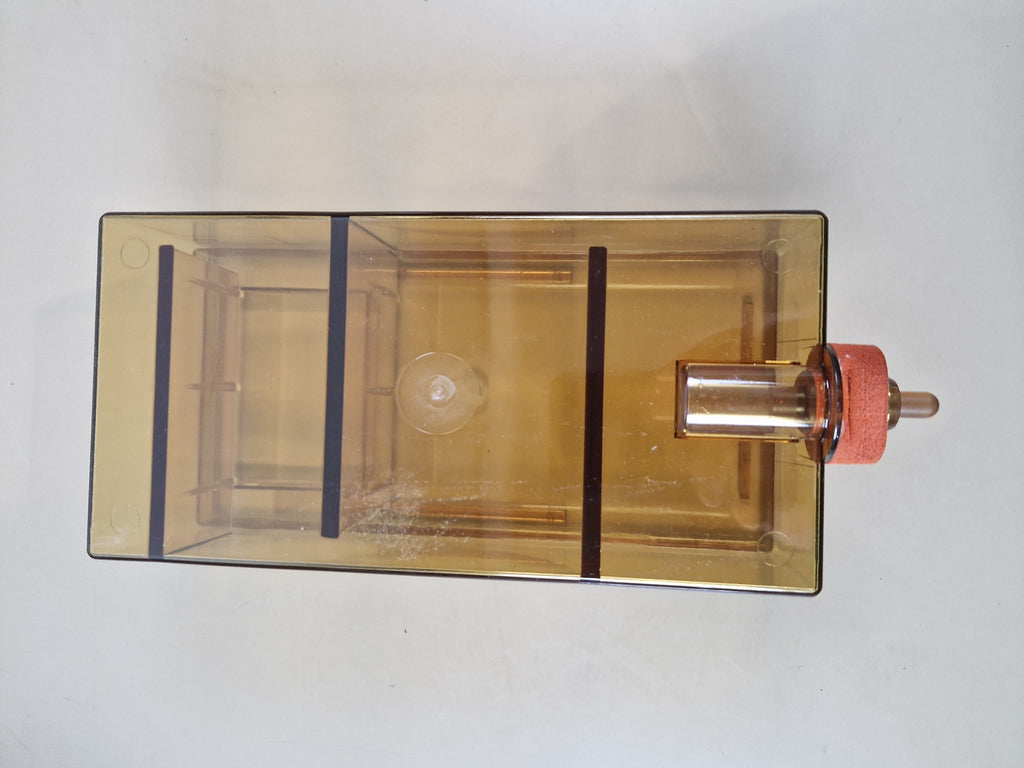

  • Air-Shields Isolette humidity reservoir assembly with 83 900 58 retrofit components

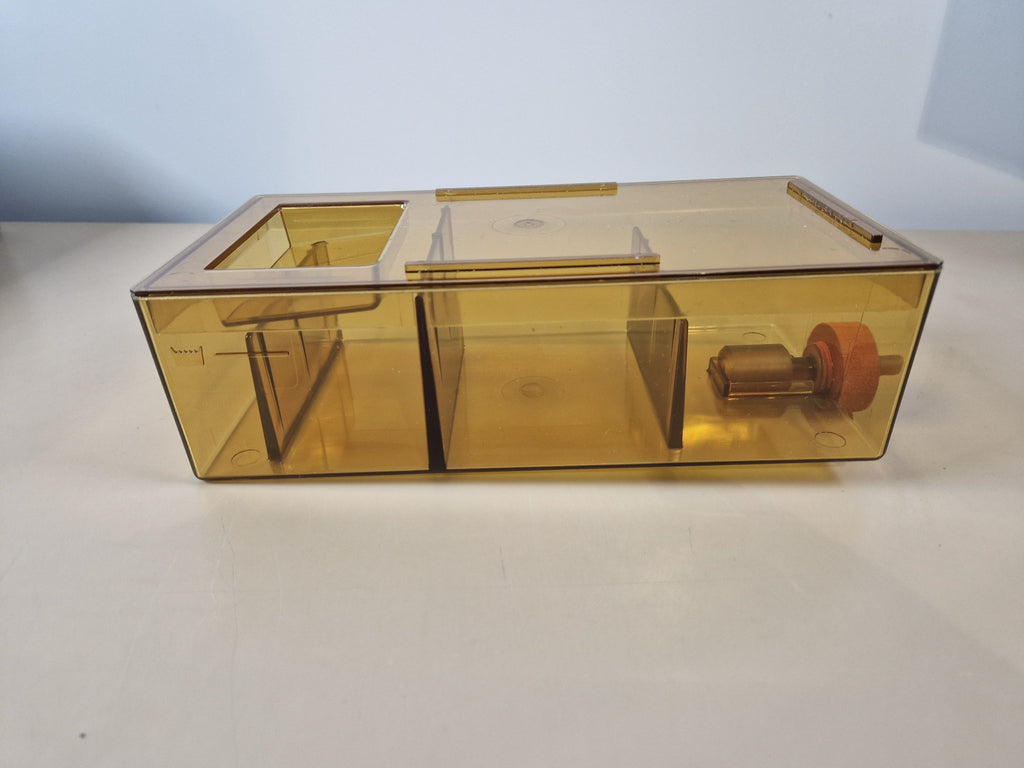

  • Isolette humidity reservoir side view

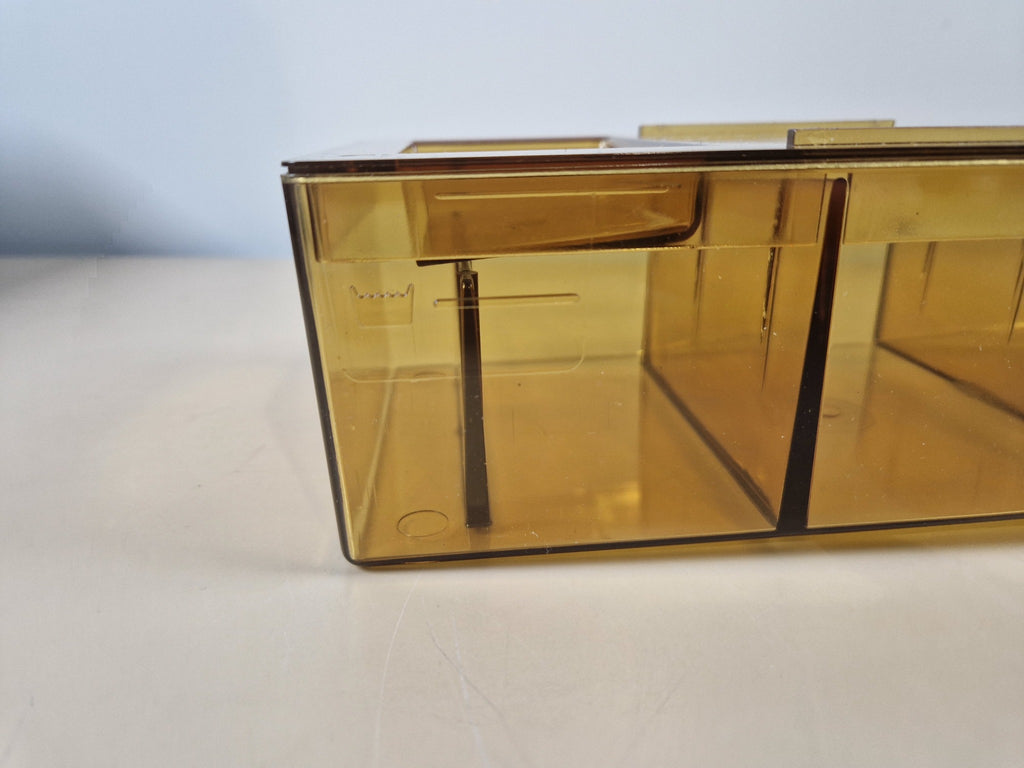

  • Isolette humidity reservoir side detail

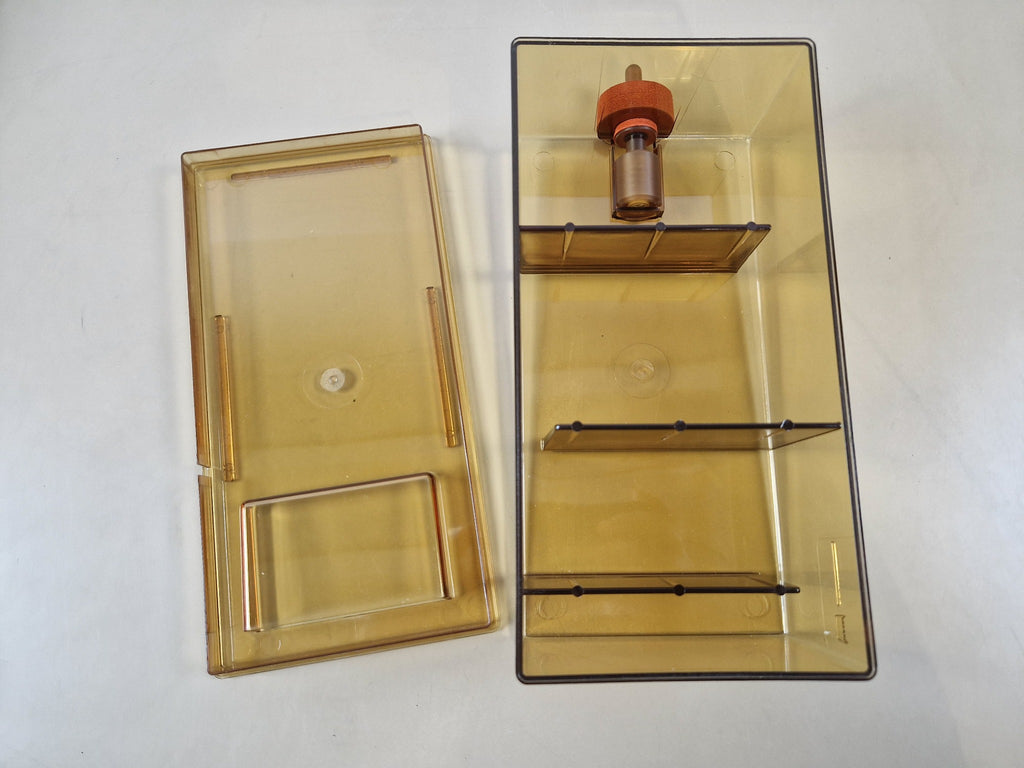

  • Isolette humidity reservoir with cover removed

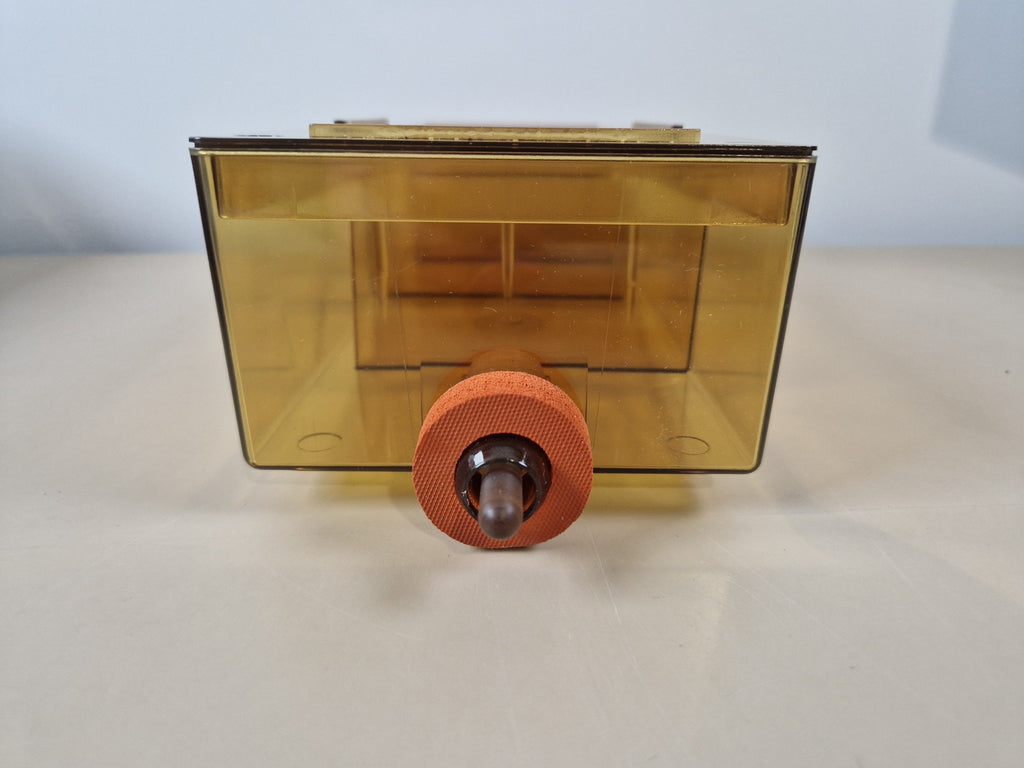

  • Isolette humidity reservoir valve end view

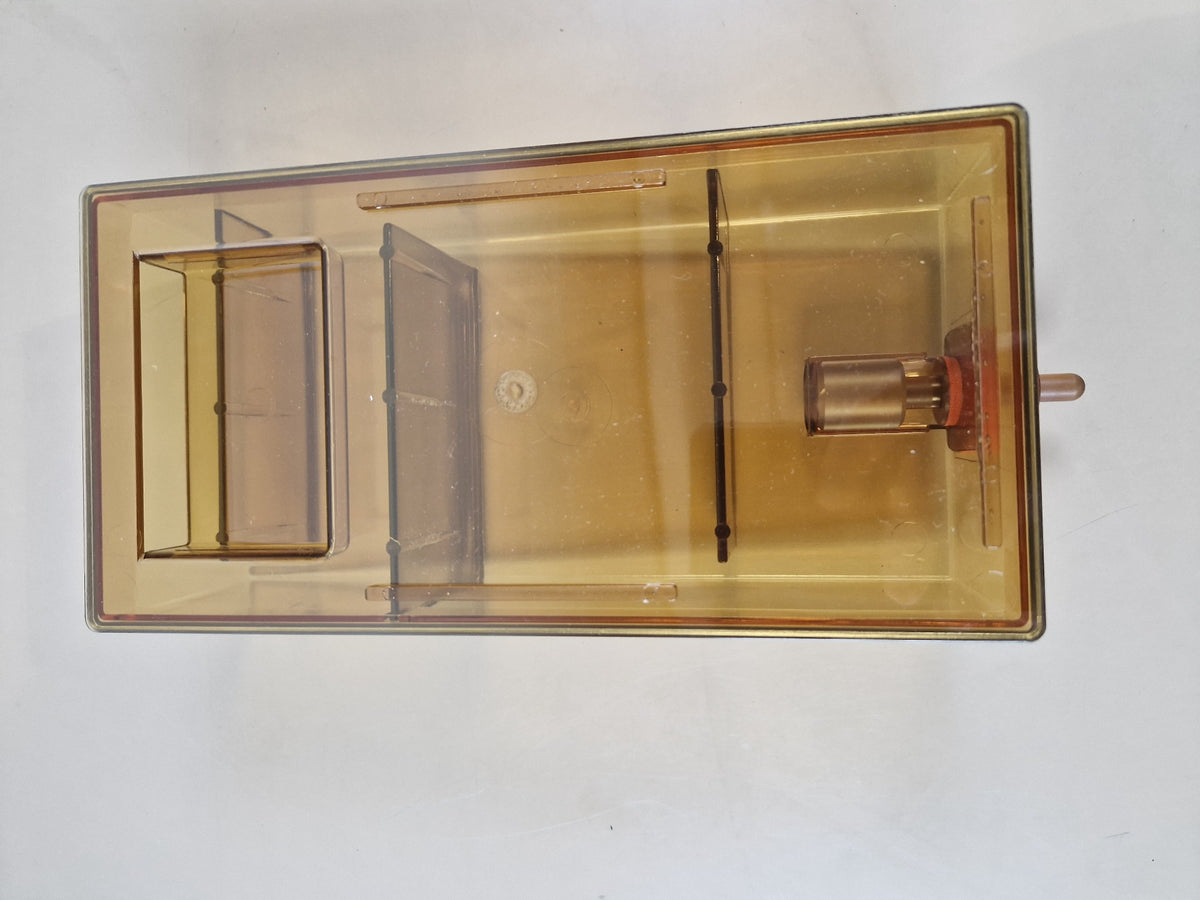

  • Isolette humidity reservoir internal top view

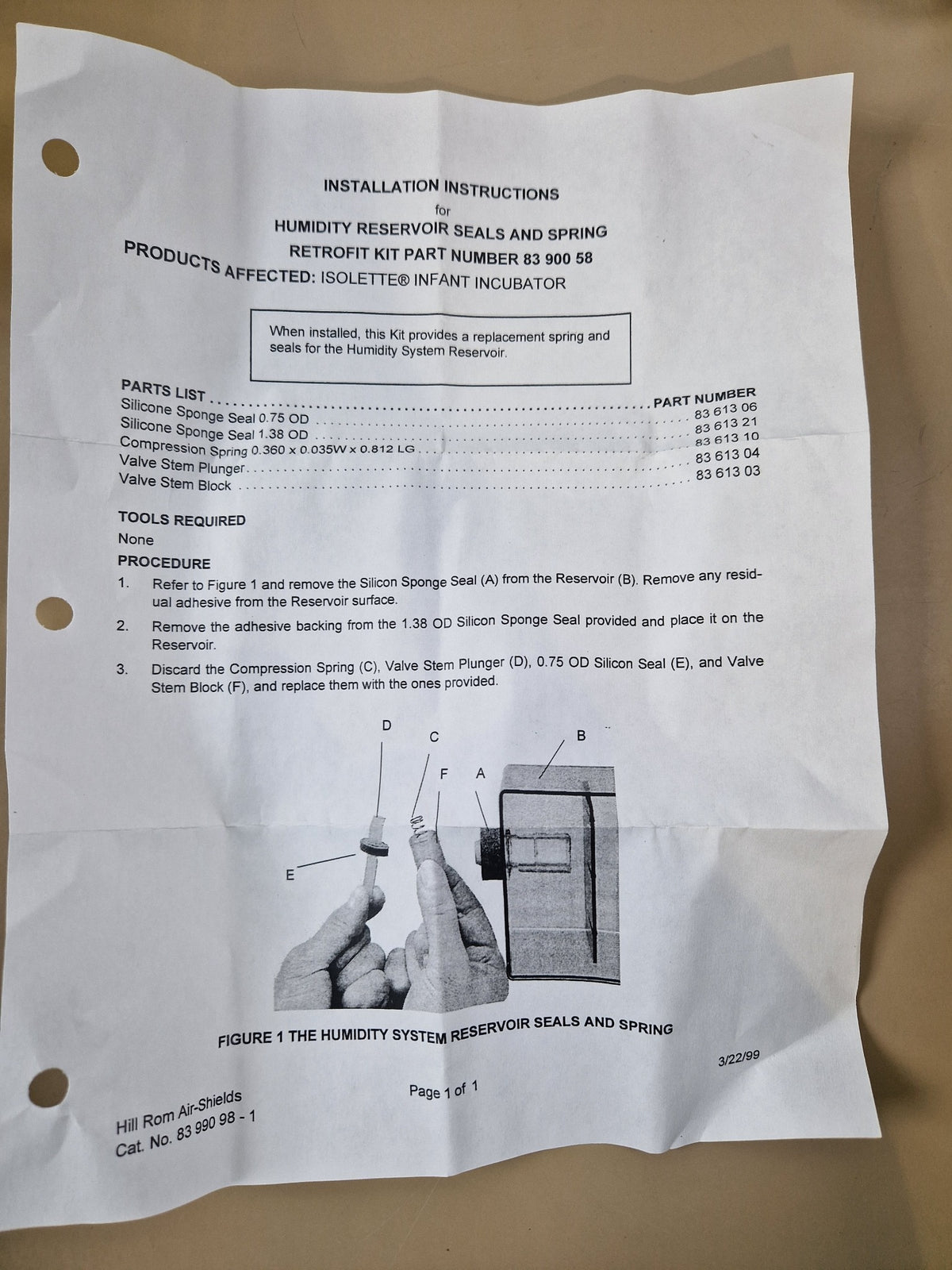

  • Air-Shields 83 900 58 humidity reservoir seals and spring retrofit kit installation instructions

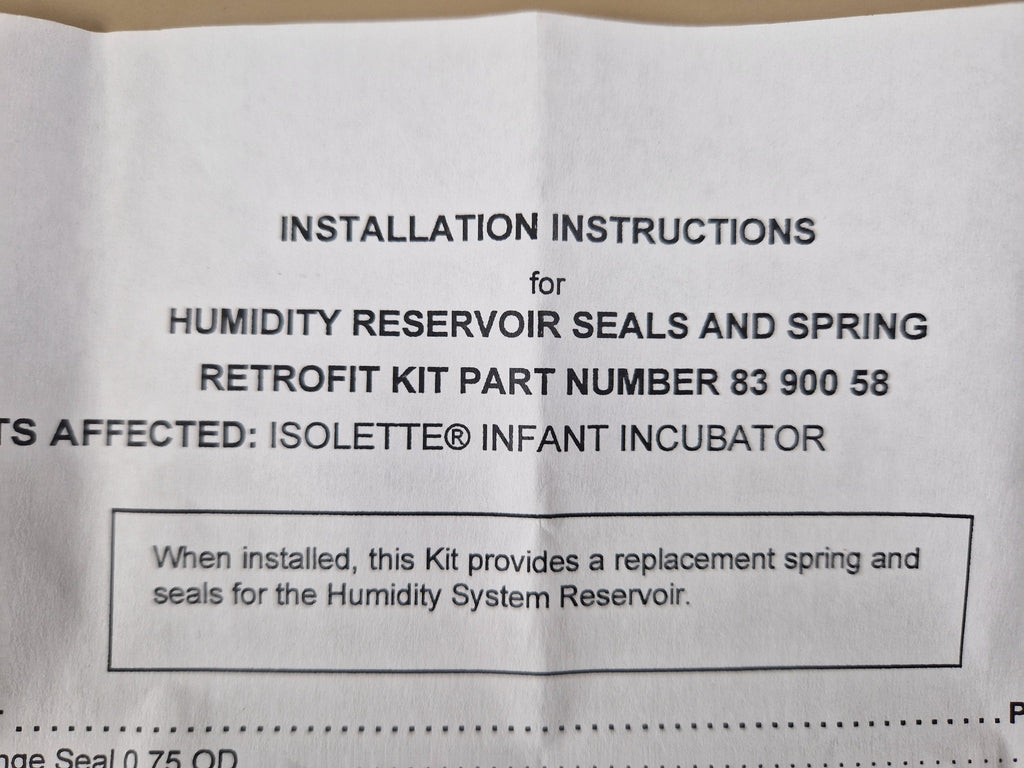

  • Air-Shields 83 900 58 installation instructions showing Isolette Infant Incubator compatibility

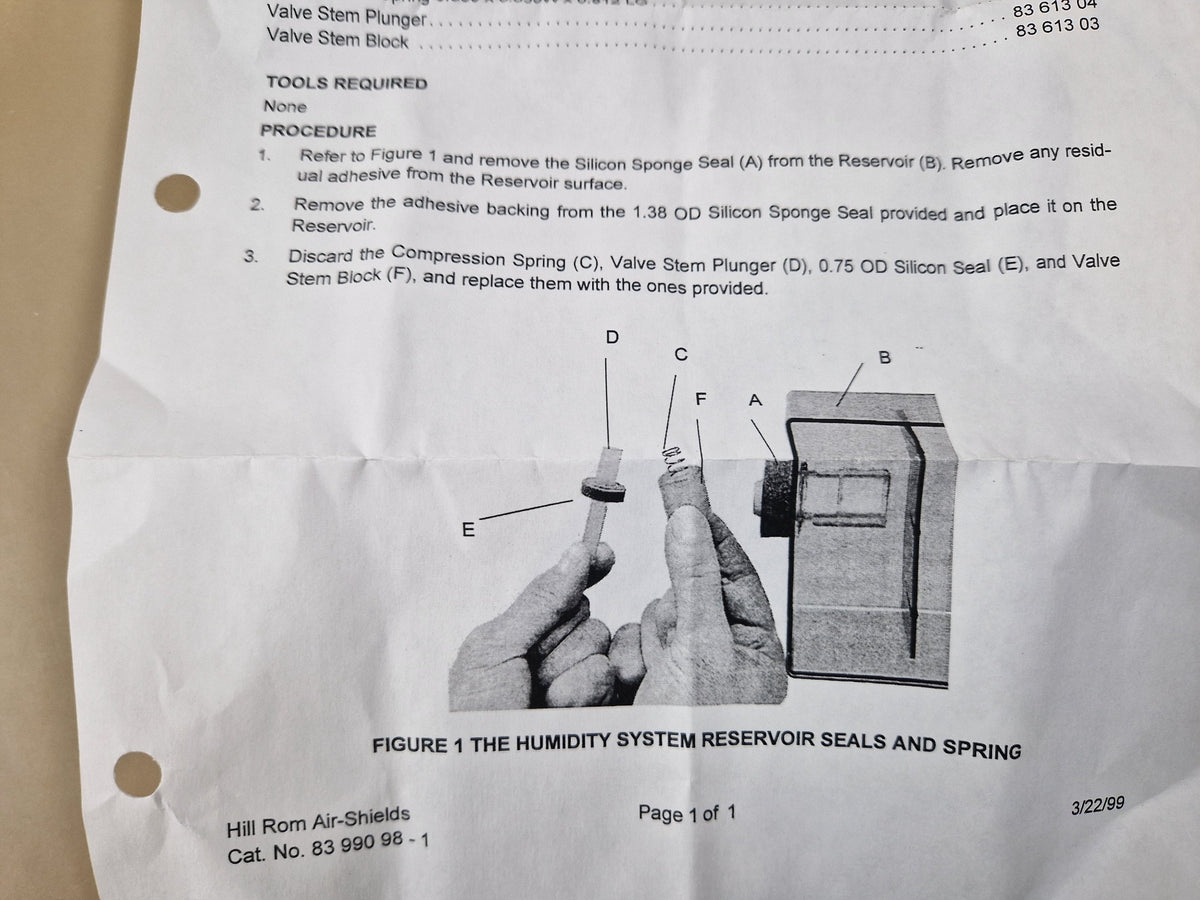

  • Air-Shields 83 900 58 retrofit kit procedure and reservoir diagram
  • Air-Shields Isolette humidity reservoir assembly with 83 900 58 retrofit components
  • Isolette humidity reservoir side view
  • Isolette humidity reservoir side detail
  • Isolette humidity reservoir with cover removed
  • Isolette humidity reservoir valve end view
  • Isolette humidity reservoir internal top view
  • Air-Shields 83 900 58 humidity reservoir seals and spring retrofit kit installation instructions
  • Air-Shields 83 900 58 installation instructions showing Isolette Infant Incubator compatibility
  • Air-Shields 83 900 58 retrofit kit procedure and reservoir diagram
Air-Shields Isolette Humidity Reservoir Assembly + 83 900 58 Seals & Spring Retrofit Kit

Air-Shields Isolette Humidity Reservoir Assembly + 83 900 58 Seals & Spring Retrofit Kit

£199.00

Air-Shields / Drager Isolette Humidity Reservoir Assembly with Humidity Reservoir Seals & Spring Retrofit Kit – Part No. 83 900 58

Supplied exactly as shown in the photographs, including the amber humidity reservoir assembly and the installation instruction sheet for retrofit kit 83 900 58.

Compatibility

  • Product family: Air-Shields / Drager Isolette Infant Incubator
  • Confirmed application: Isolette Infant Incubator humidity system
  • Service-manual compatibility: Part 83 900 58 is listed in the Humidity System (Accessory) section for “02” Series models
  • The same manual lists the humidity reservoir assembly separately as part 83 613 65-R, reservoir 83 613 01, and cover 83 613 00.

Important compatibility note: The supplied instruction sheet identifies 83 900 58 as the Humidity Reservoir Seals and Spring Retrofit Kit. The reservoir housing itself does not show a visible part-number label in the photographs, so this listing does not claim that the plastic reservoir housing itself is part number 83 900 58. Please compare the photographs and your existing reservoir before purchase.

Retrofit Kit Details

The installation instructions state that the kit provides replacement spring and seals for the Humidity System Reservoir.

  • Silicone Sponge Seal 0.75 OD – part 83 613 06
  • Silicone Sponge Seal 1.38 OD – part 83 613 21
  • Compression Spring 0.360 × 0.035W × 0.812 LG – part 83 613 10
  • Valve Stem Plunger – part 83 613 04
  • Valve Stem Block – part 83 613 03

Package Includes

  • 1 × Humidity Reservoir assembly as pictured
  • 1 × Humidity Reservoir Seals and Spring Retrofit Kit / fitted components associated with part 83 900 58 as pictured
  • 1 × Installation instruction sheet

Buyer will receive exactly the same type of unit as shown in the photos.

Dispatched from the UK with tracking. We generally use UPS, FedEx, DHL or Parcelforce. We normally require 1 working day for packing and booking the courier service, and the tracking number is provided after collection.

Price: £199.00 each + shipping

Stock: 2 available
