Siemens ACUSON 9L4 Multi-D Linear Array Ultrasound Probe 4–9 MHz - Tested
Siemens ACUSON 9L4 Multi-D Linear Array Ultrasound Probe 4–9 MHz - Tested

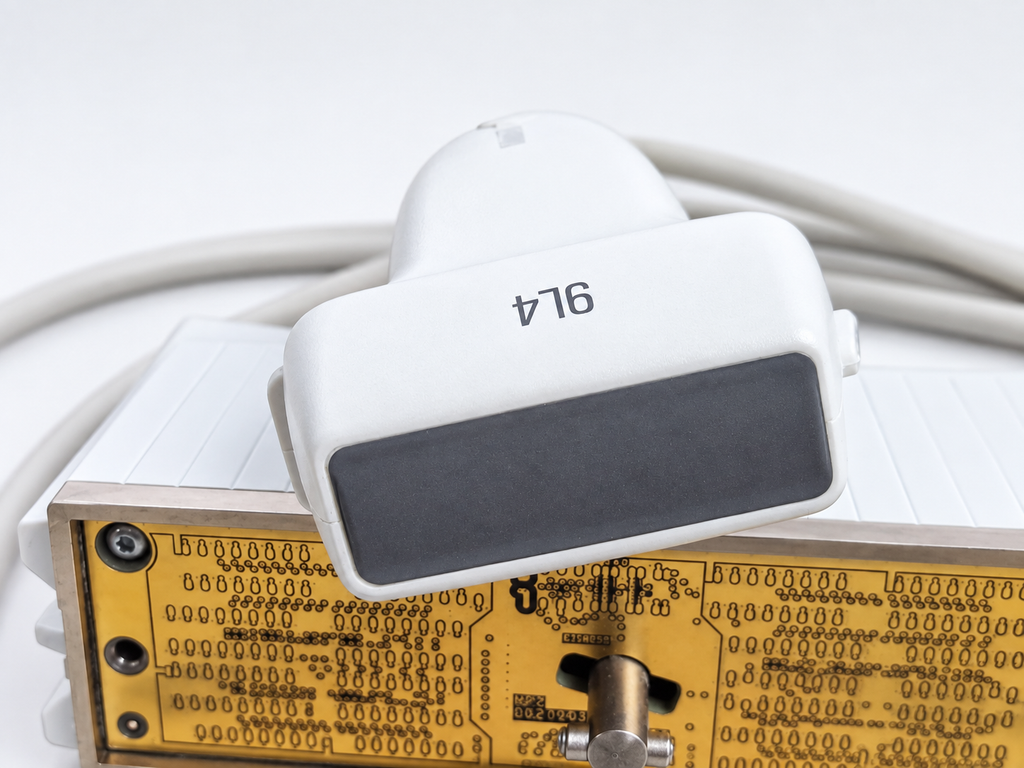

Siemens ACUSON 9L4 Multi-D linear array ultrasound transducer

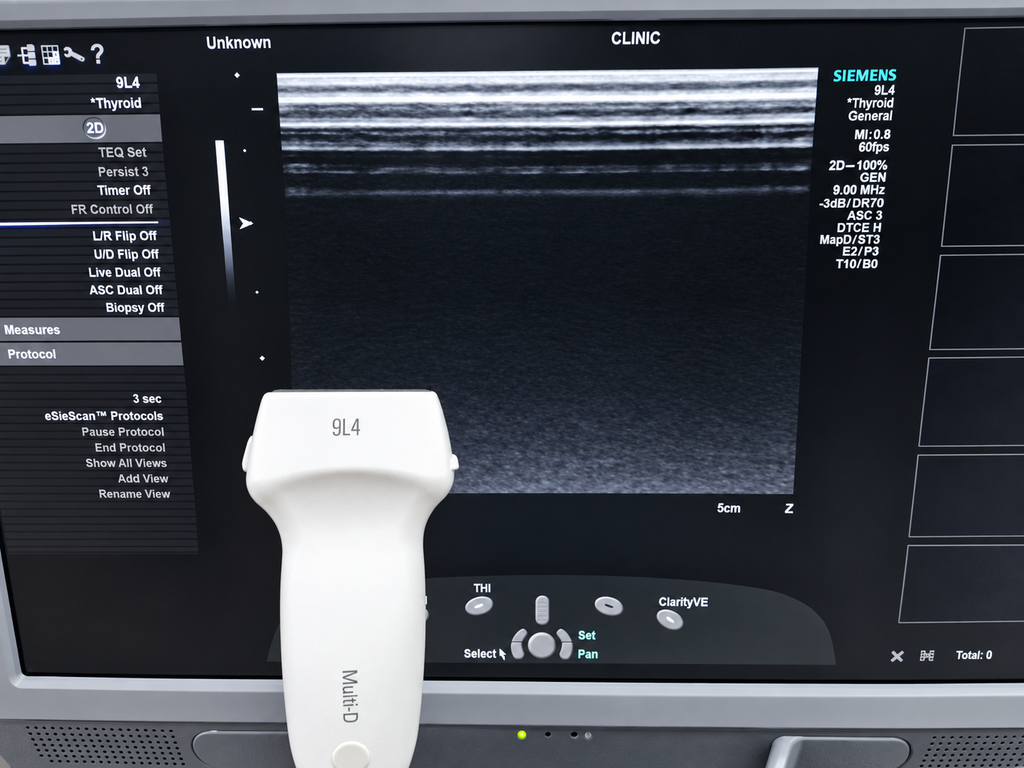

The probe has been tested on a compatible Siemens ACUSON ultrasound system and works well. The test image shown in the photographs demonstrates live scanning performance.
Condition
Excellent used condition. The probe head, lens, housing, cable and connector are all in very good condition.
- No visible wear to the probe lens
- No tears, cracks or damage to the probe face
- No broken / dead / weak elements observed during testing
- Clear ultrasound image obtained during functional test
Product Details
- Manufacturer: Siemens Medical Solutions USA, Inc. / Siemens Healthineers
- Brand / System: Siemens ACUSON
- Probe: 9L4
- Type: Linear array ultrasound transducer
- Technology: Multi-D matrix transducer
- Frequency bandwidth: 4–9 MHz
- GTIN: 04056869003191
- Serial Number: 84341047
- Product / model identifier: 10789393
- Country of origin: Korea
- Ingress protection marking: IPX8
Manufacturer-Documented Applications
- Breast
- Cerebrovascular
- Digital / small parts
- Fetal echo
- Musculoskeletal
- OB/GYN
- Pediatric abdomen
- Pediatric hip
- Pelvis
- Penile
- Peripheral vascular
- Testicle
- Thyroid
Compatibility
Manufacturer documentation identifies the Siemens ACUSON 9L4 for use with the following ultrasound systems:
- ACUSON S1000
- ACUSON S2000
- ACUSON S3000
- ACUSON SC2000
Compatibility can depend on system software version and hardware configuration. Buyers should confirm the probe connector and software support on their exact ultrasound system before purchase.
Included

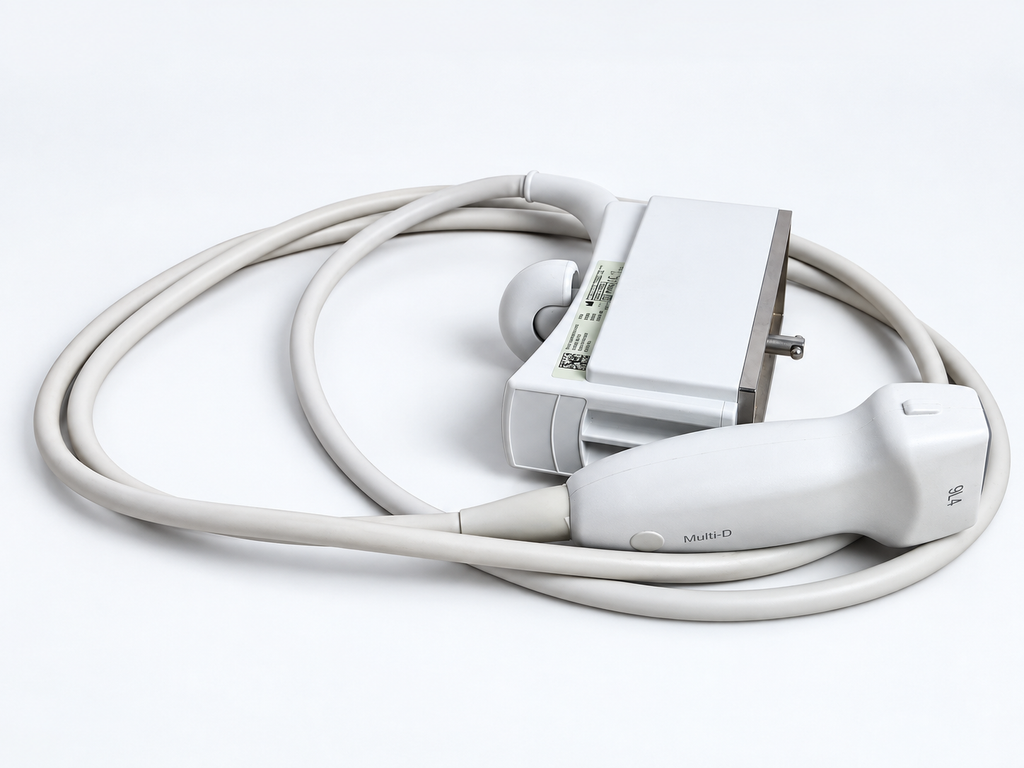

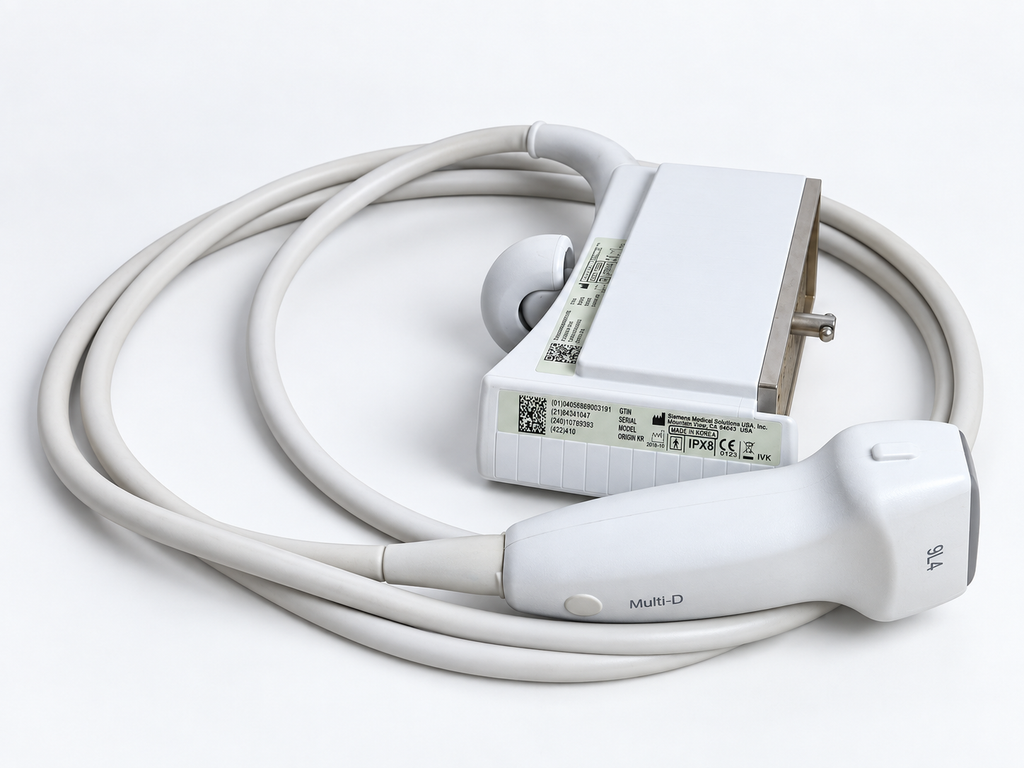

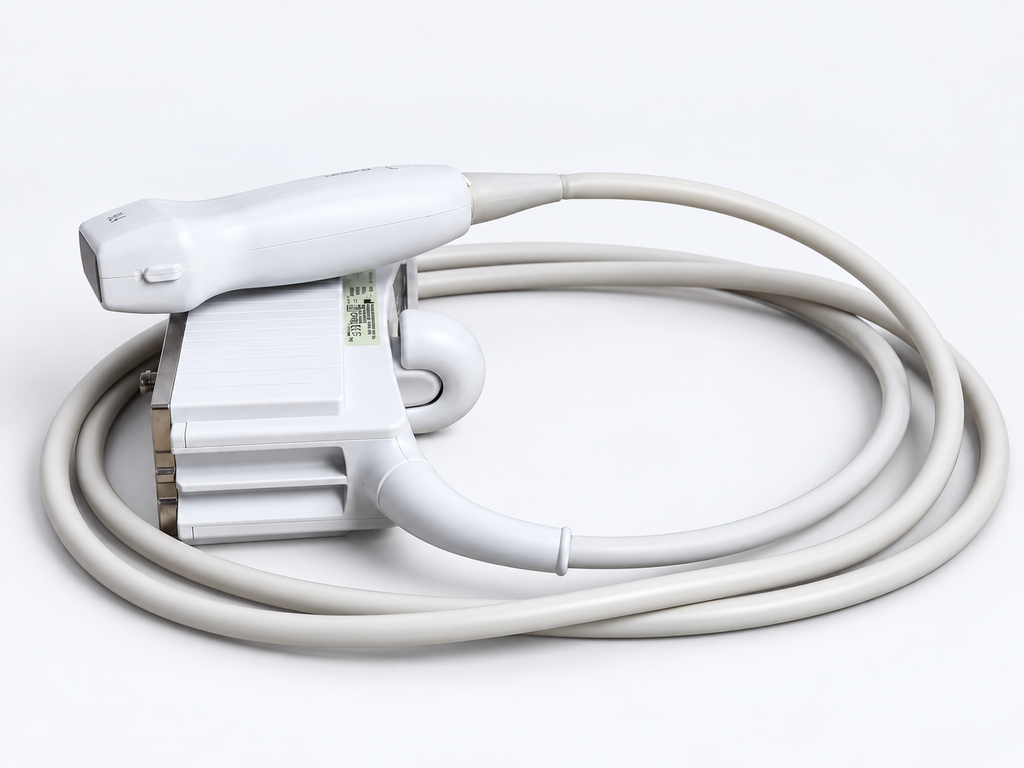

1 x Siemens ACUSON 9L4 Multi-D linear array ultrasound probe / transducer, exactly as shown in the photographs.
Testing
The probe was connected to a compatible Siemens ACUSON system and tested. It produced a clear ultrasound image and operated correctly during our functional check. We observed no broken elements / crystal dropout and no wear or damage to the acoustic lens.
DISCLAIMER
This is pre-owned professional medical imaging equipment. It should be inspected and tested by suitably qualified personnel before clinical use. The purchaser is responsible for confirming compatibility with their ultrasound system and compliance with applicable local regulations.
