Philips Respironics BiPAP A40 Ventilator + System One Humidifier + Battery Module

Philips Respironics BiPAP A40 bi-level ventilator / non-invasive ventilation system supplied with the System One humidifier, detachable battery module and mains power supply shown in the photographs.

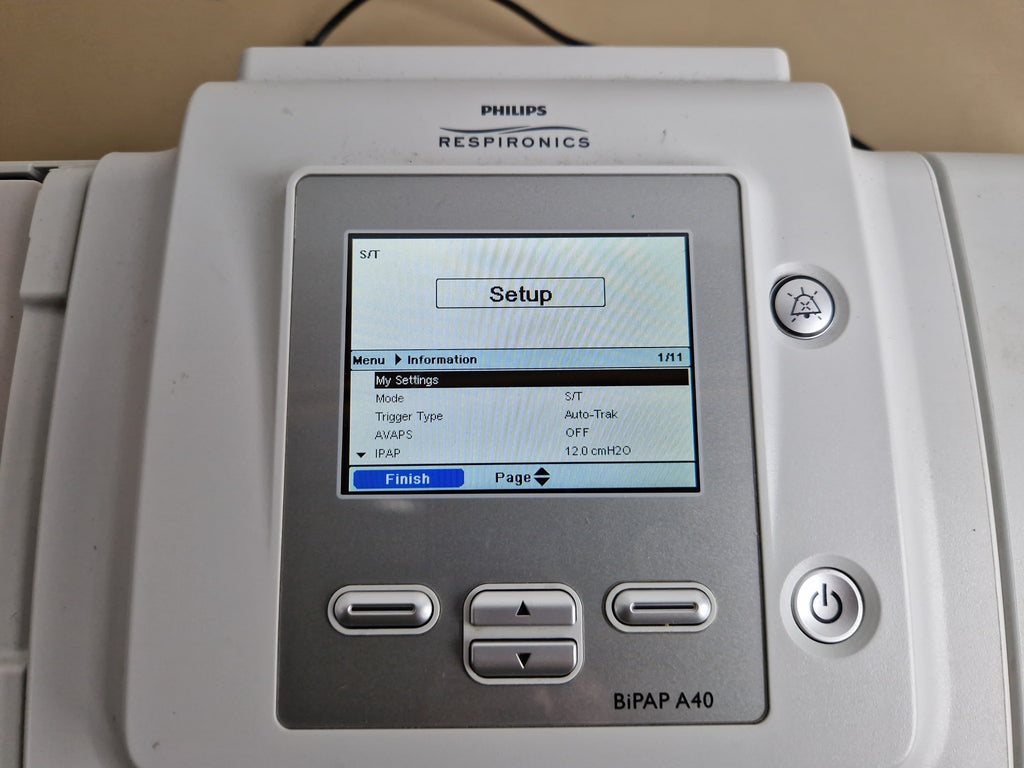

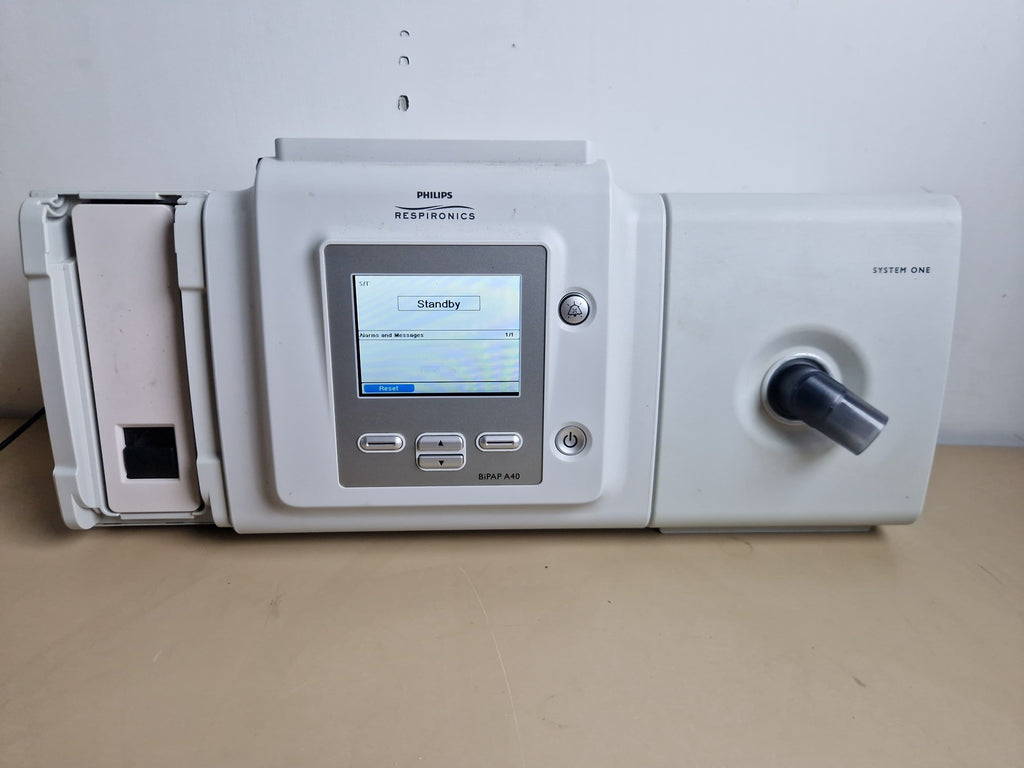

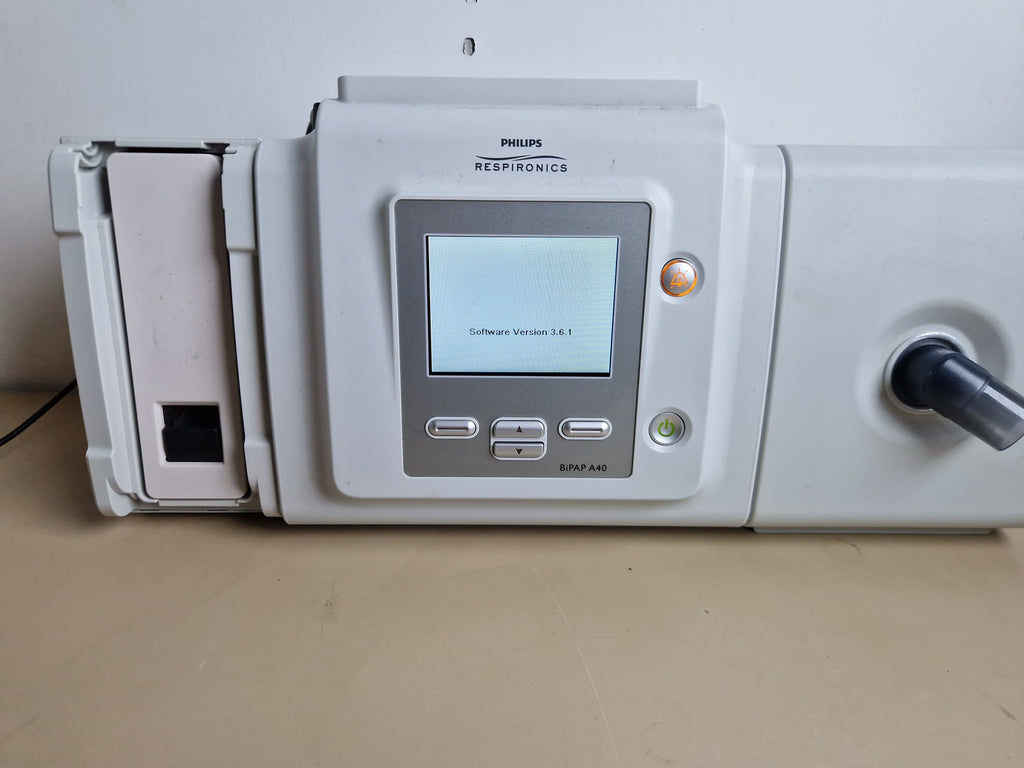

The unit has been powered on, menu-checked and function-tested on mains power and works well. The display, controls and setup menu operate correctly, and the unit is shown running software version 3.6.1.

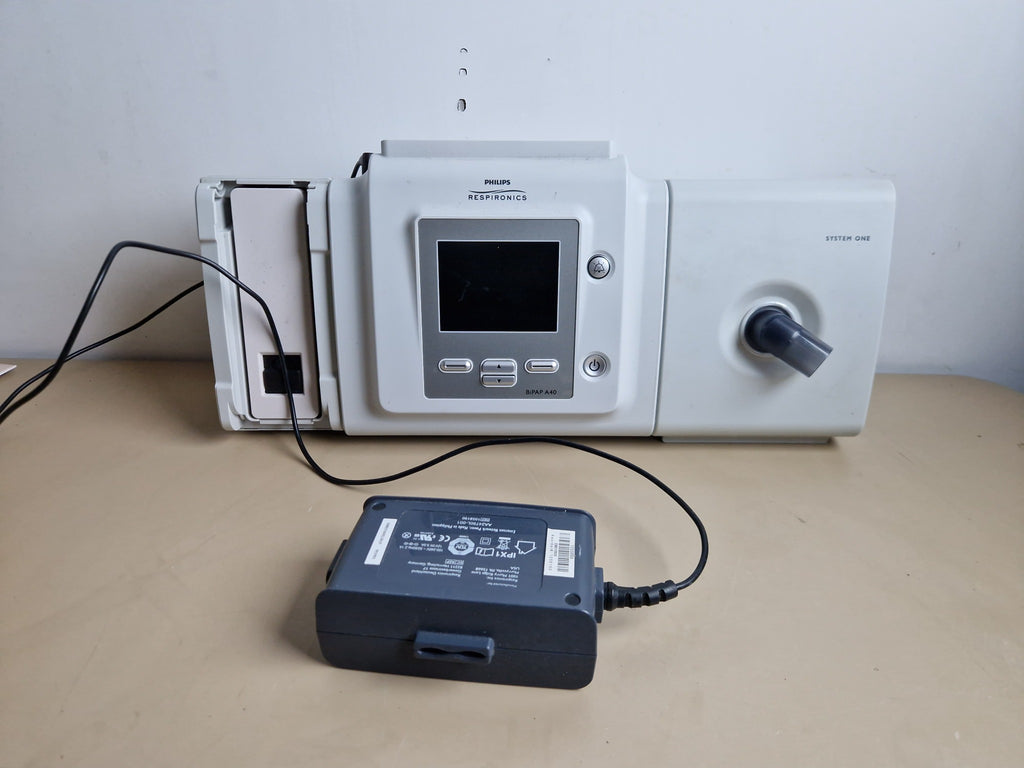

Included in This Listing

• 1 x Philips Respironics BiPAP A40 International ventilator – Ref. 1109596
• 1 x Philips Respironics A-Series / System One humidifier – Ref. 1111514
• 1 x Philips Respironics detachable battery module – Ref. 1096770
• 1 x detachable battery fitted in the battery module –
• 1 x mains AC power supply as shown

Only the items shown in the photographs are included.

Main Unit Details

• Manufacturer: Philips Respironics / Respironics, Inc.
• Model: BiPAP A40
• Version: International
• Reference: 1109596
• Serial number: V1807230604FD
• Software version: 3.6.1
• Power: 24 VDC, 4.2 A via power supply; 12 VDC, 5.0 A external battery input

Manufacturer Specifications

• Ventilation modes: CPAP, S, S/T, PC, T and AVAPS-AE
• Hybrid ventilation: AVAPS and AVAPS-AE
• IPAP range: 4–40 cmH₂O
• EPAP range: 4–25 cmH₂O
• Target tidal volume: 200–1500 ml in AVAPS / AVAPS-AE
• Breath rate: 0–40 bpm; 4–40 bpm in T mode
• Inspiratory time: 0.5–3 seconds
• Triggering / cycling: Auto-Trak, Sensitive Auto-Trak and Flow Triggering
• Rise time: 1–6 (approximately 100–600 ms)
• Monitoring: pressure, tidal volume, minute ventilation, respiratory rate, leak and I/E ratio

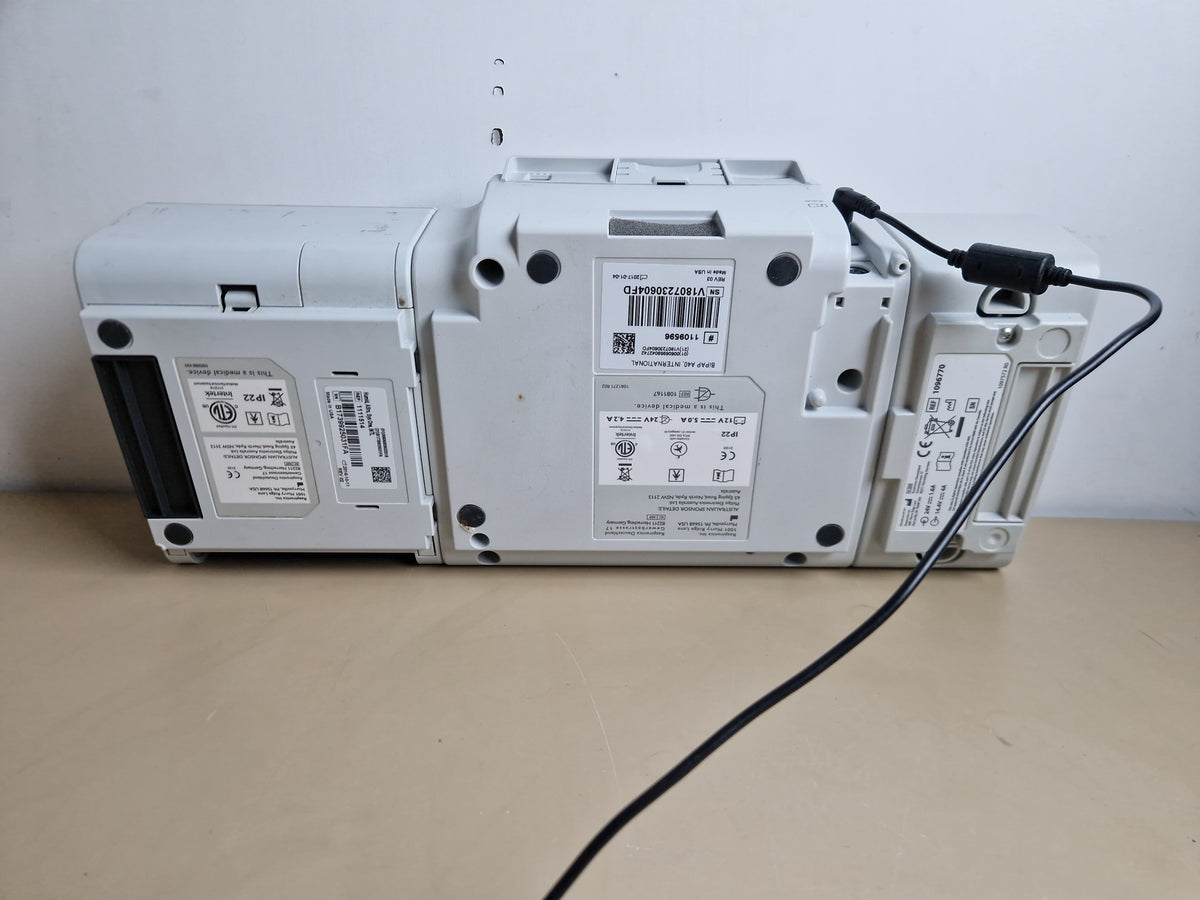

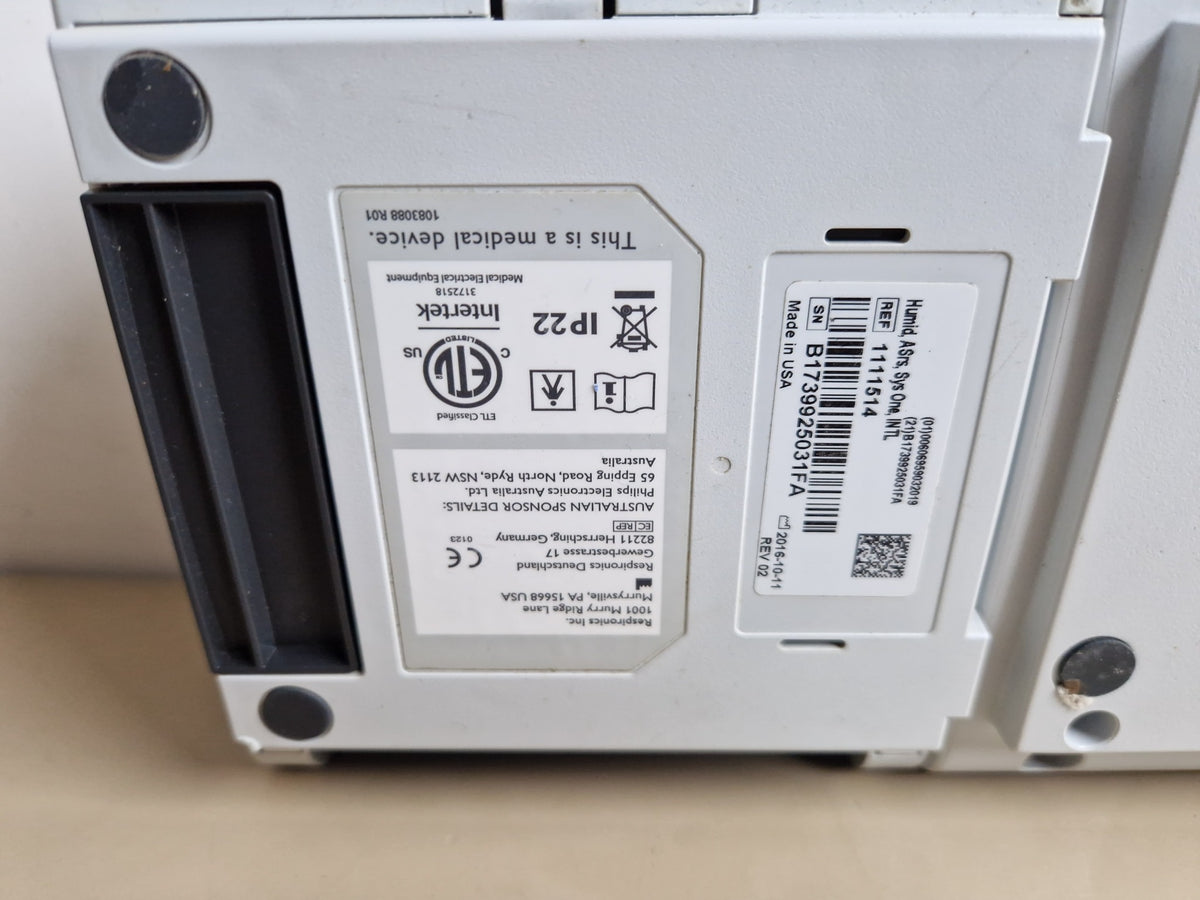

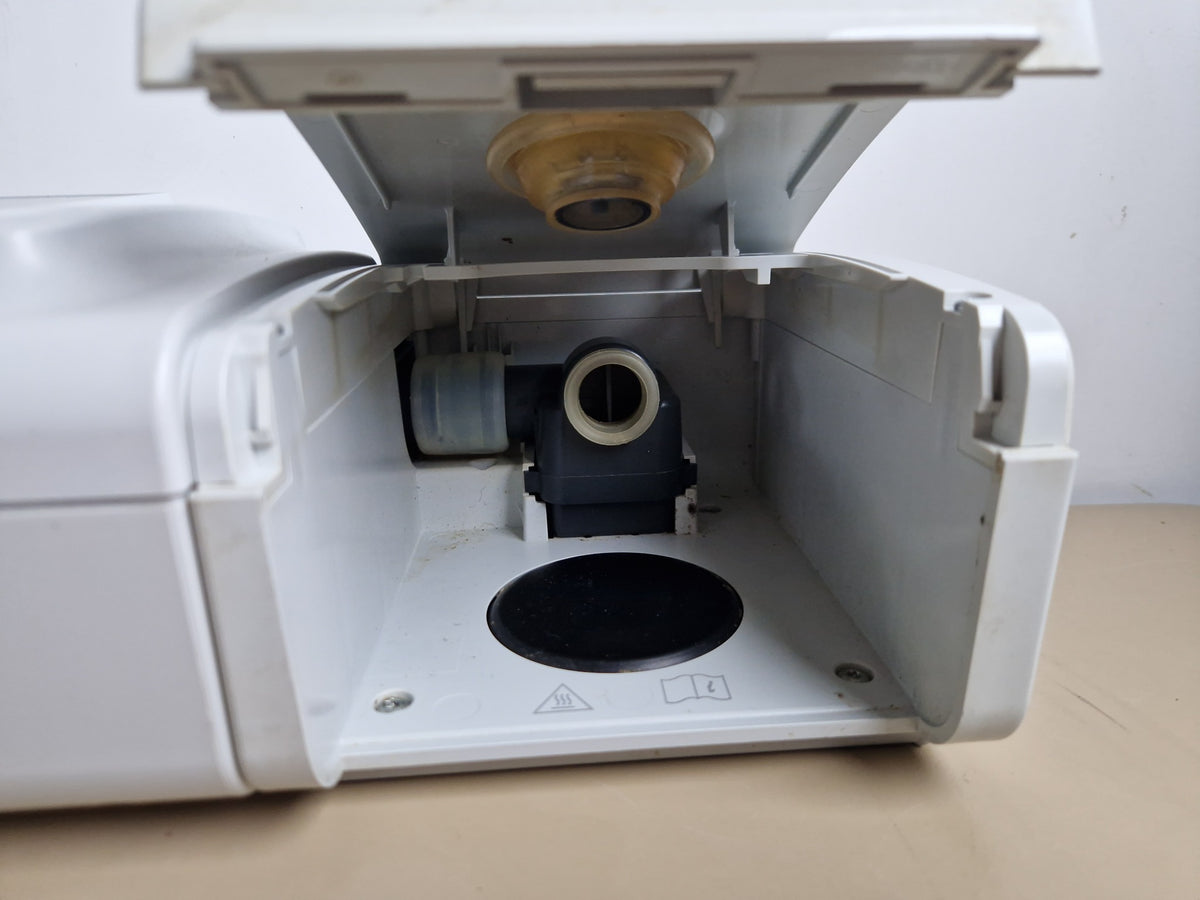

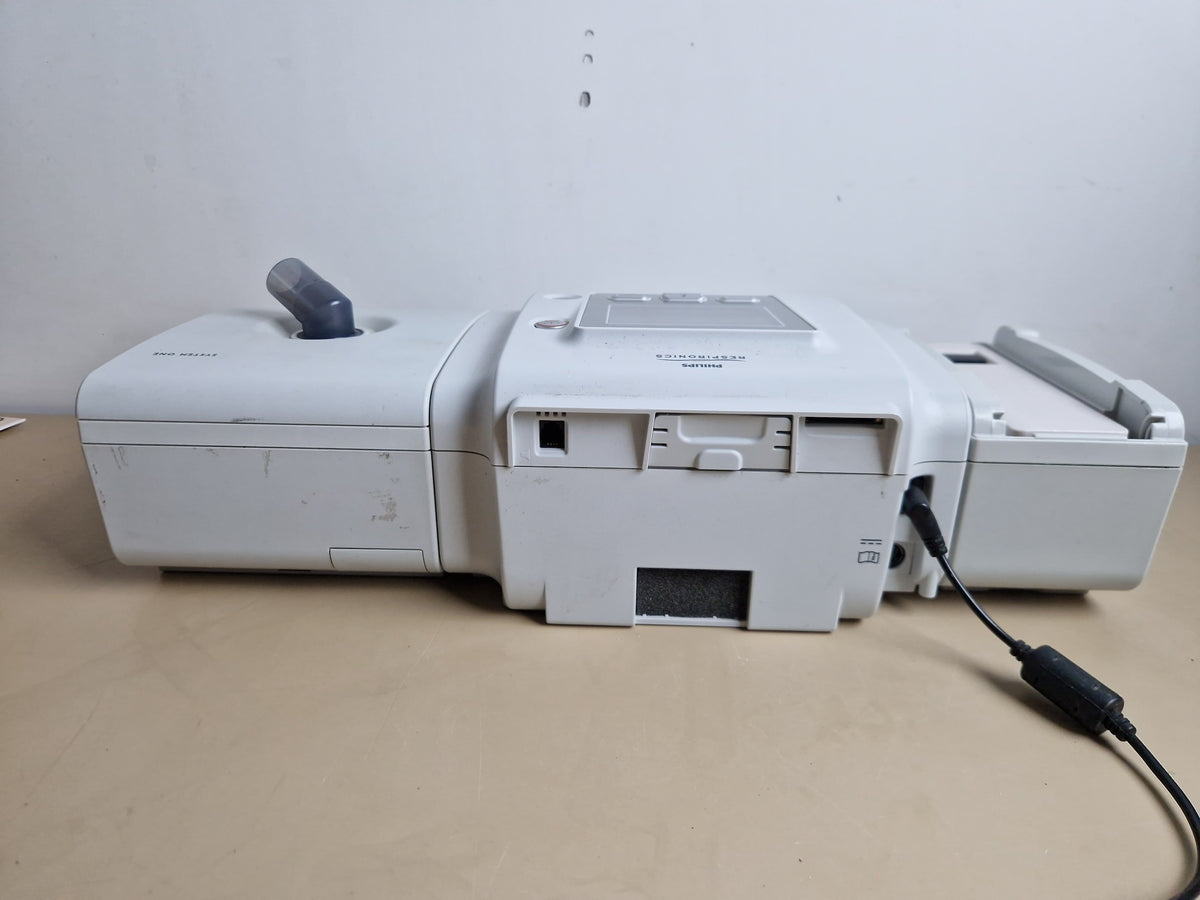

Humidifier

• Philips Respironics A-Series / System One humidifier
• Ref: 1111514
• Serial: B1739925031FA
• Date marking: 2016-10-11
• Designed for System One humidity control / Dry Box technology

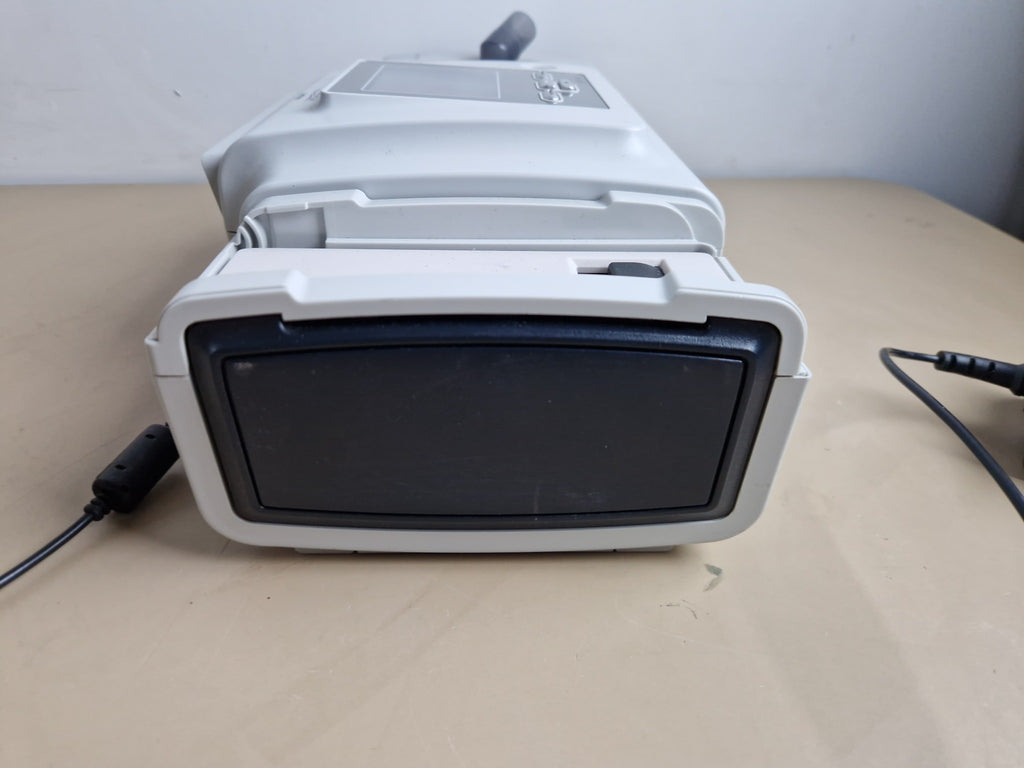

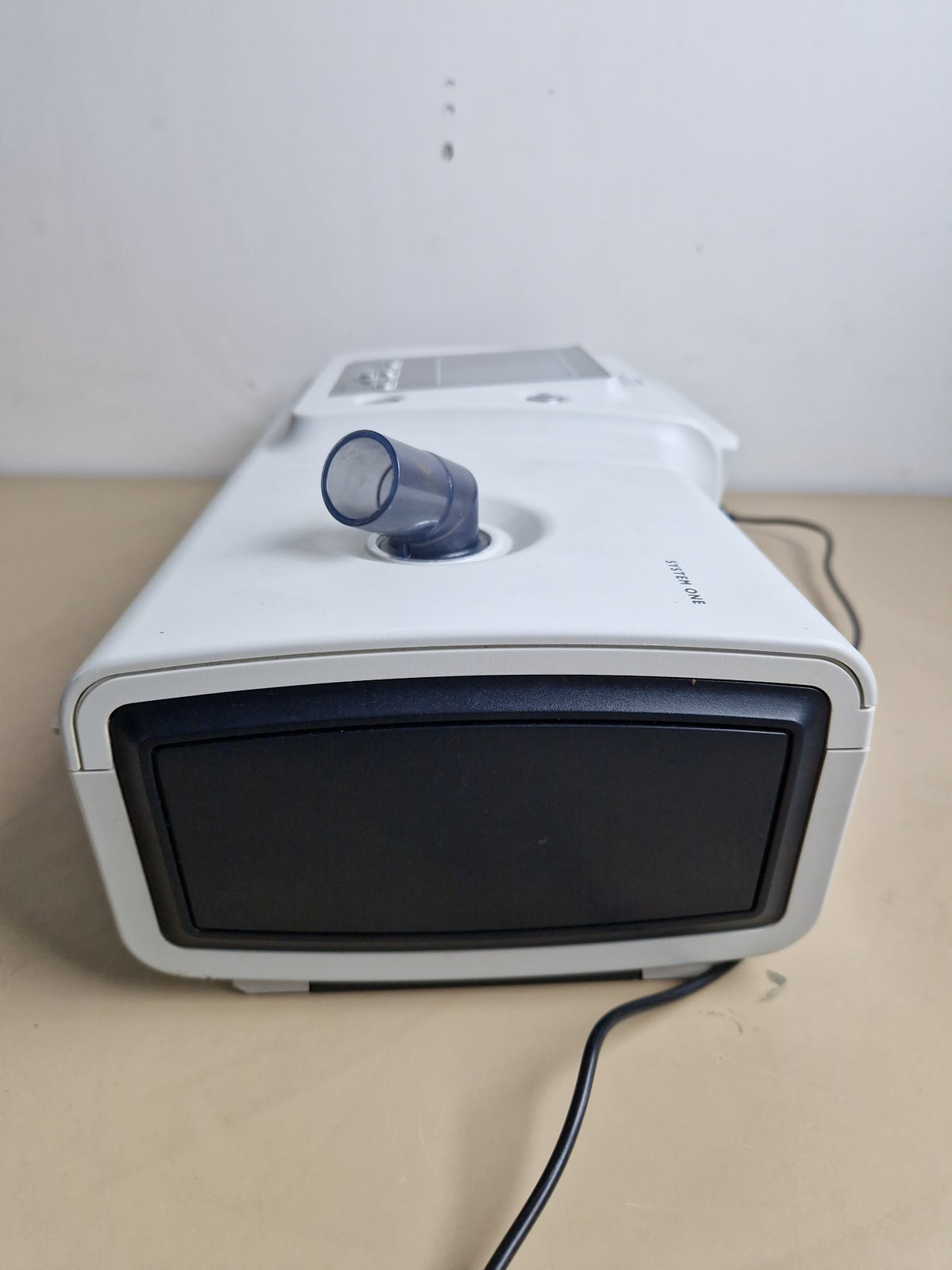

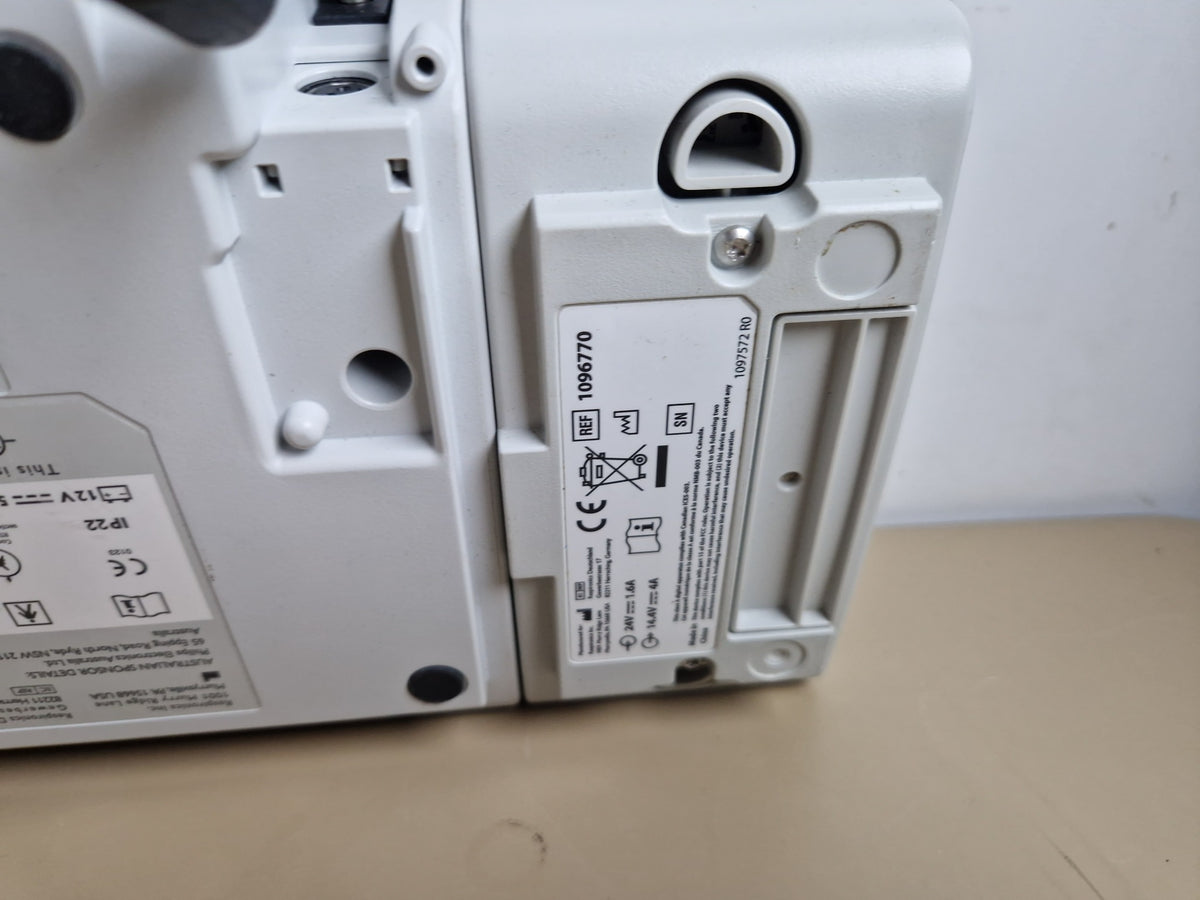

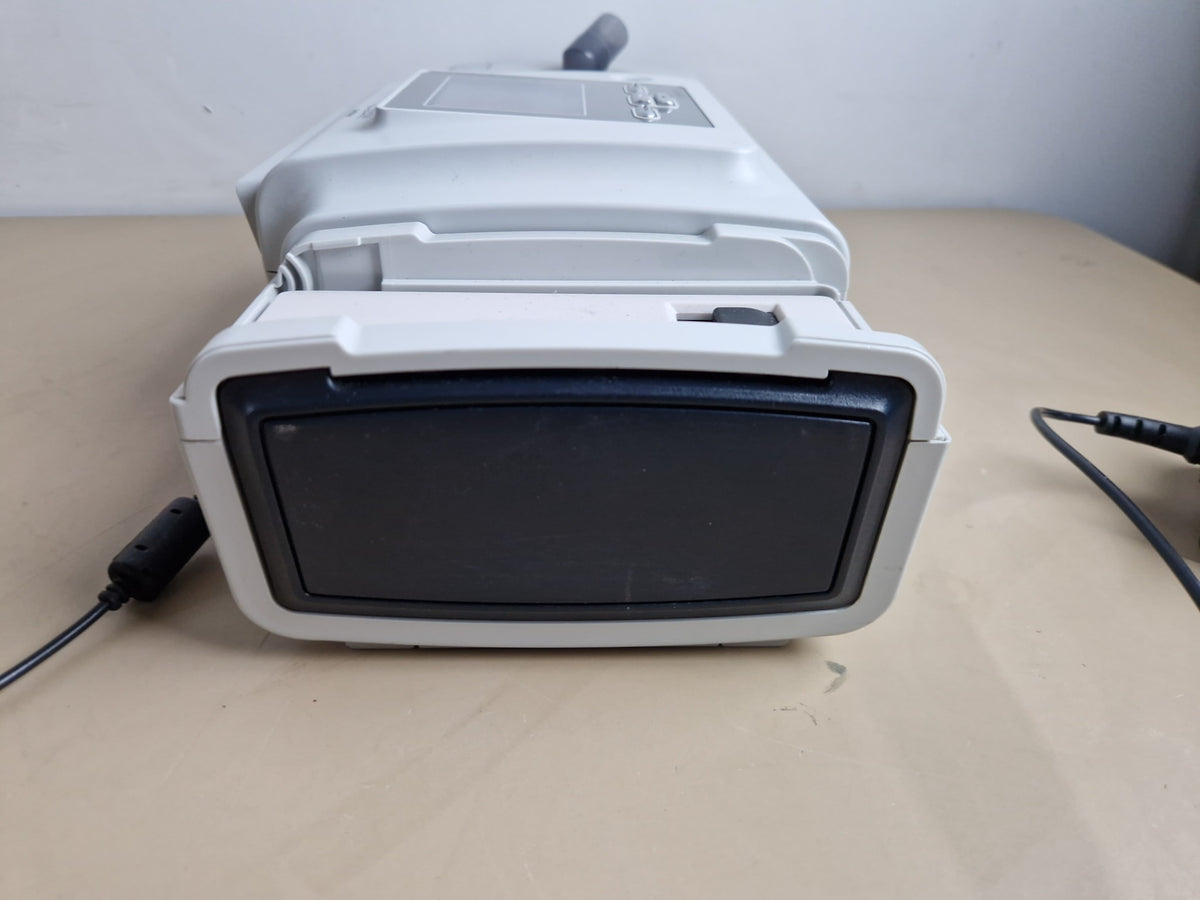

Detachable Battery Module

• Ref: 1096770
• Designed for the BiPAP A40 detachable rechargeable lithium-ion battery system
• The battery module is fitted to the ventilator and a detachable battery is present

Battery Condition

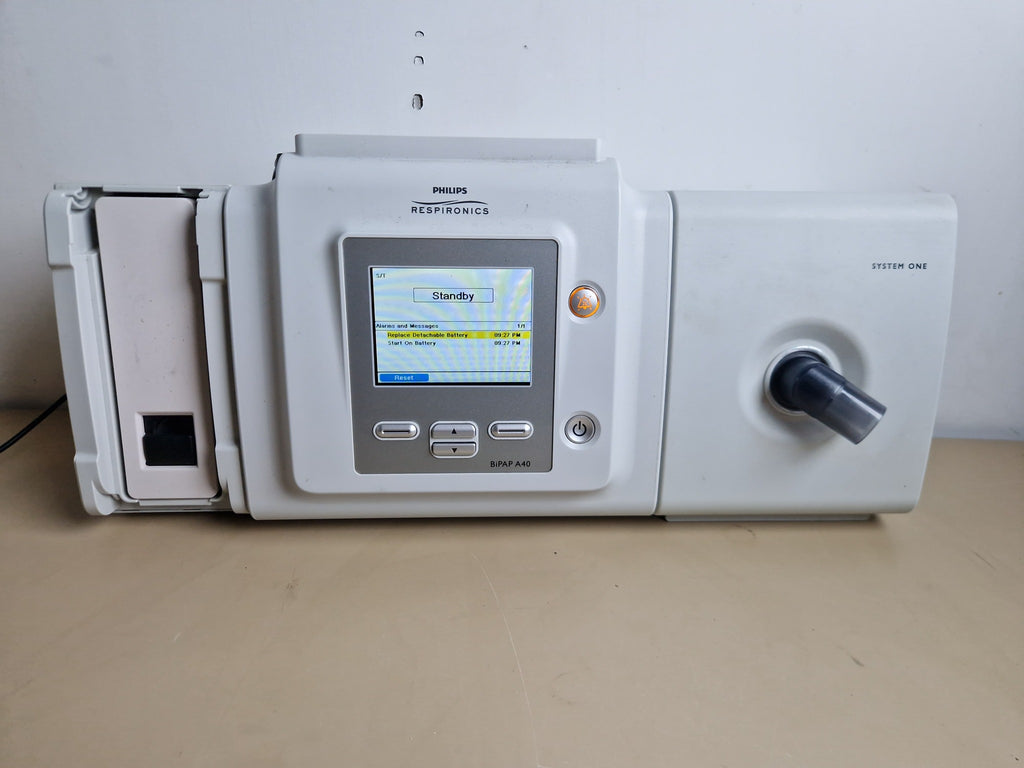

Battery runtime has not been tested and the battery condition is not guaranteed. During testing, the display showed a “Replace Detachable Battery” message. For this reason the battery should be treated as requiring replacement / assessment and must not be relied upon as a working backup power source.

Condition

Used condition with normal cosmetic marks from previous use and storage. The unit was tested on mains power and works well. Display, buttons and menus responded correctly during our functional check.

Price & Availability

£599 + shipping
Availability: 1 set

DISCLAIMER

This is pre-owned professional respiratory medical equipment. It must be inspected, serviced and function-tested by suitably qualified personnel before clinical use. The purchaser is responsible for confirming patient suitability, configuration, accessories and compliance with applicable regulations. Battery capacity is not warranted and the displayed battery replacement warning is disclosed above.
