Pfaff Medical Bilimeter 3 Bilirubinometer Bilirubin meter Analyser + tester

Pfaff Medical Bilimeter 3 bilirubinometer bilirubin meter - analyser

This is a Bilimeter 3 model from Pfaff Medical GmbH, designed for rapid spectrophotometric determination of bilirubin in serum/plasma samples, particularly for neonatal jaundice assessment. It is a sample-based bilirubinometer

Condition

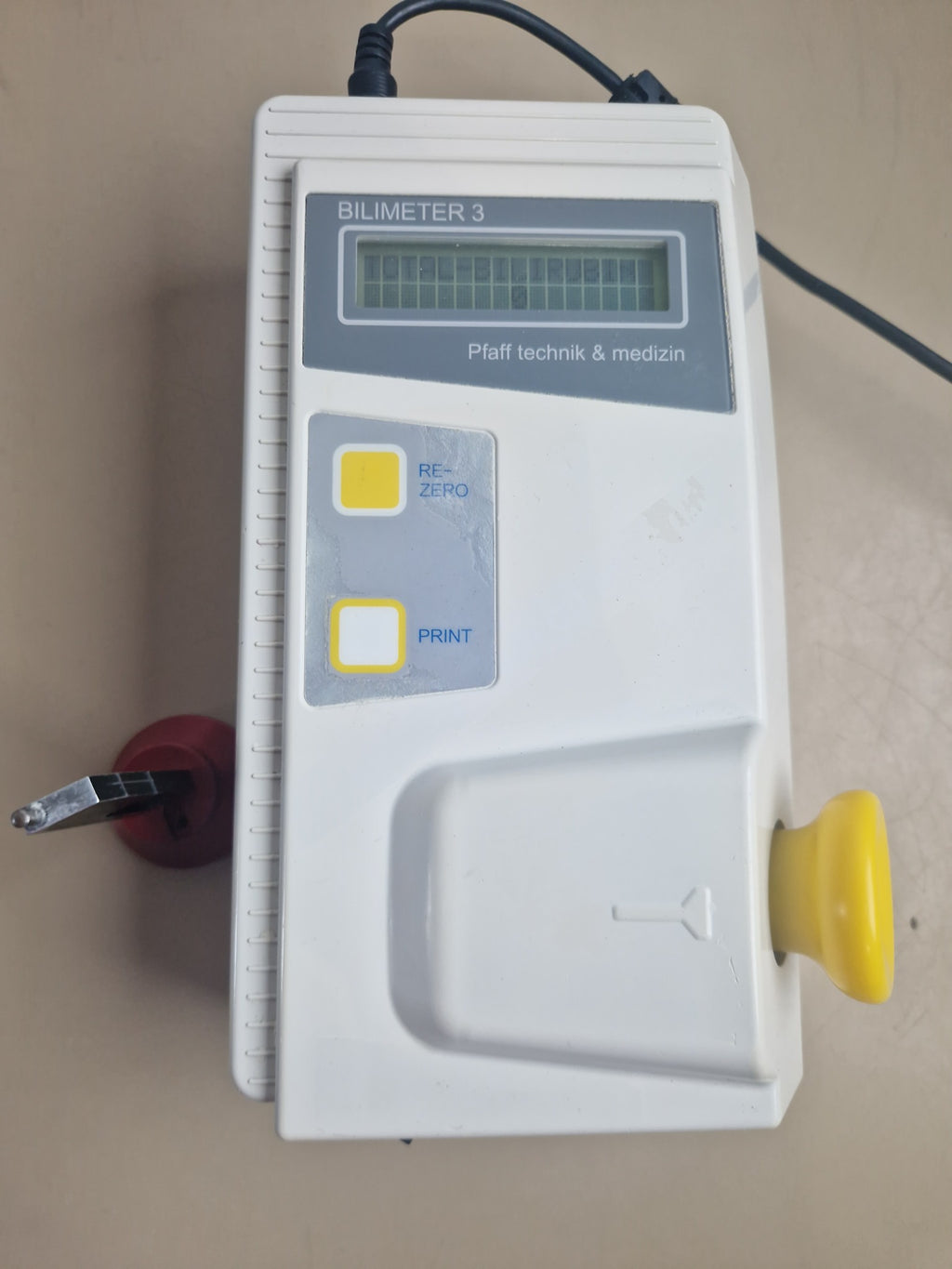

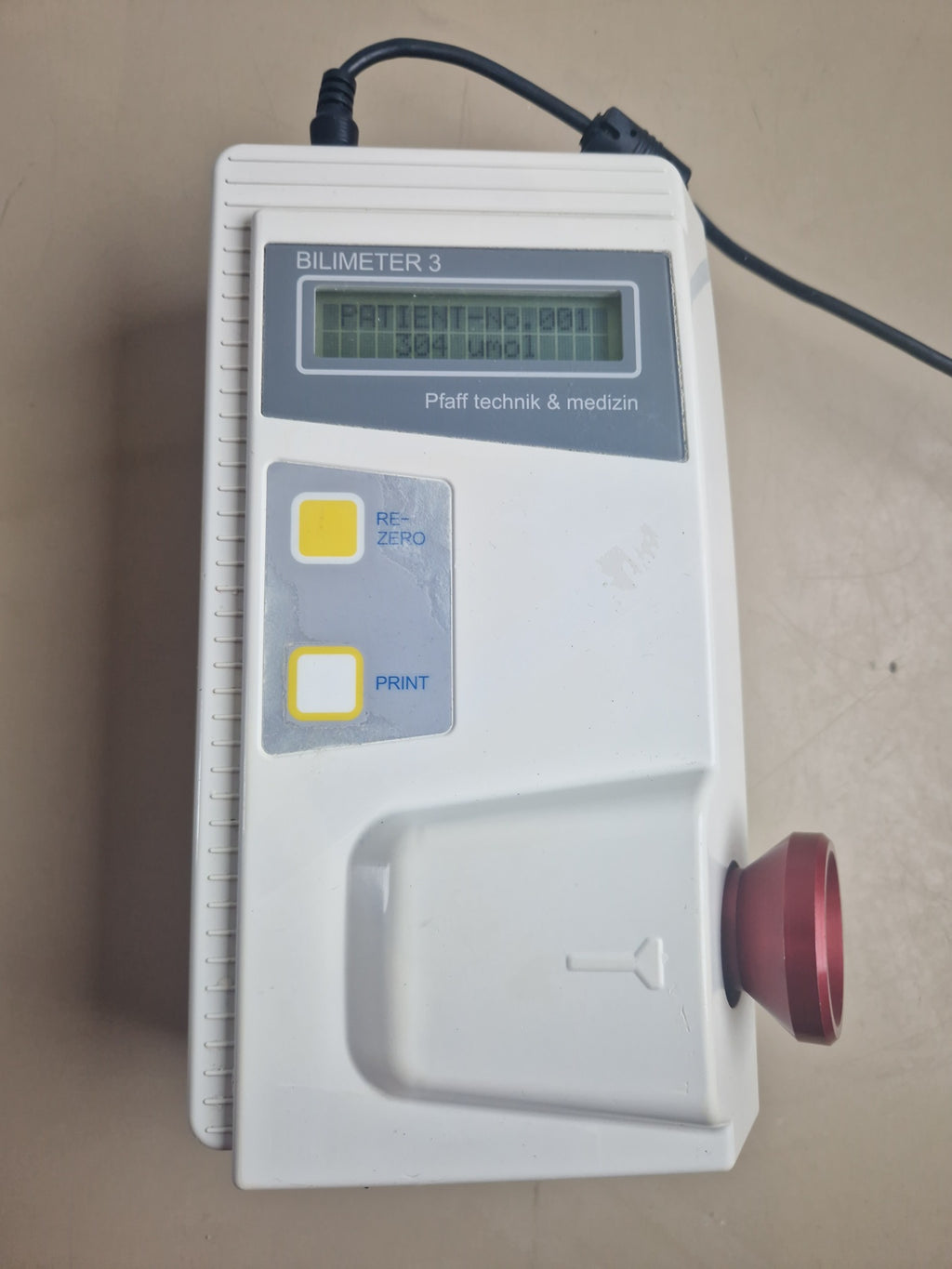

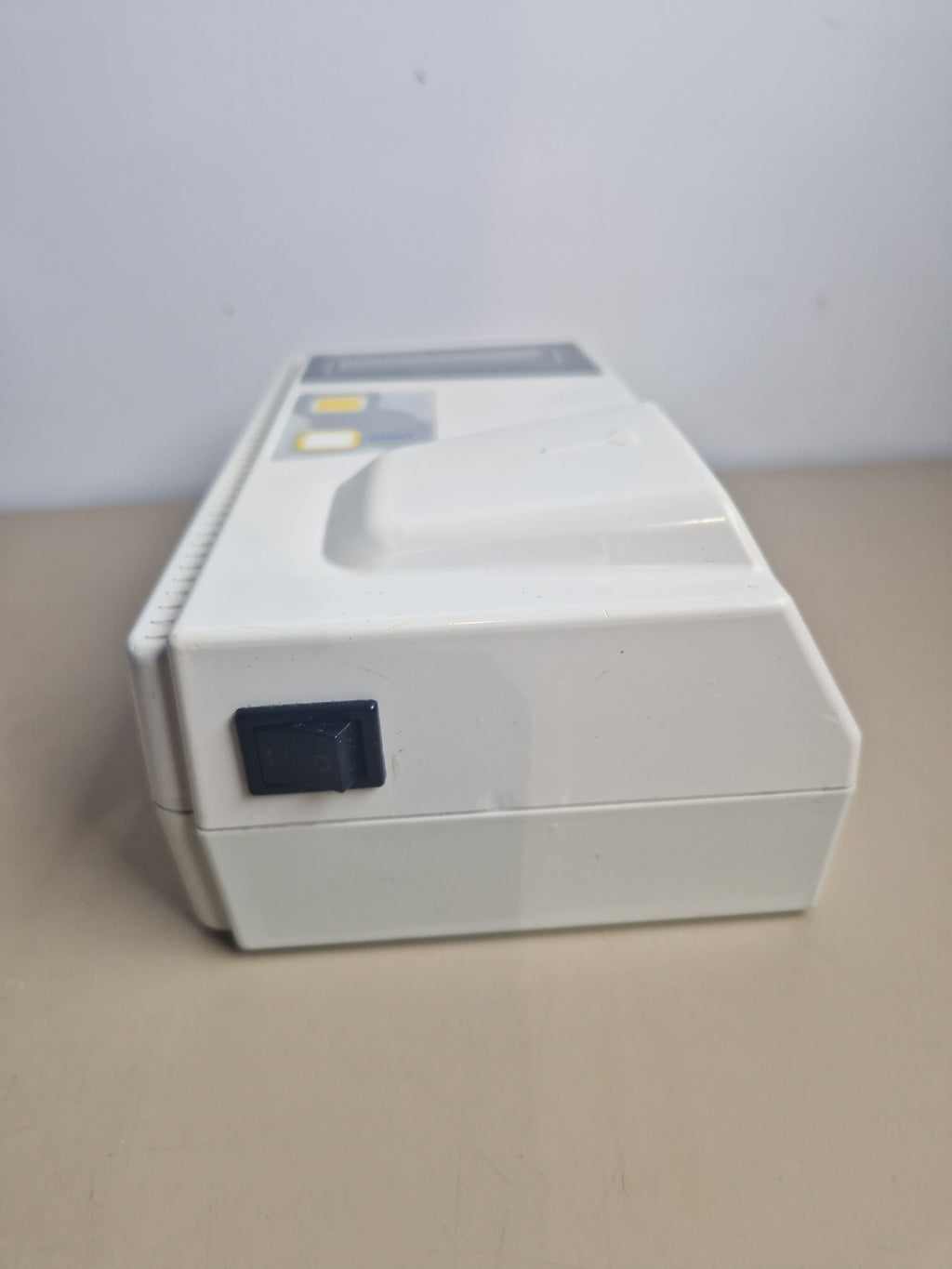

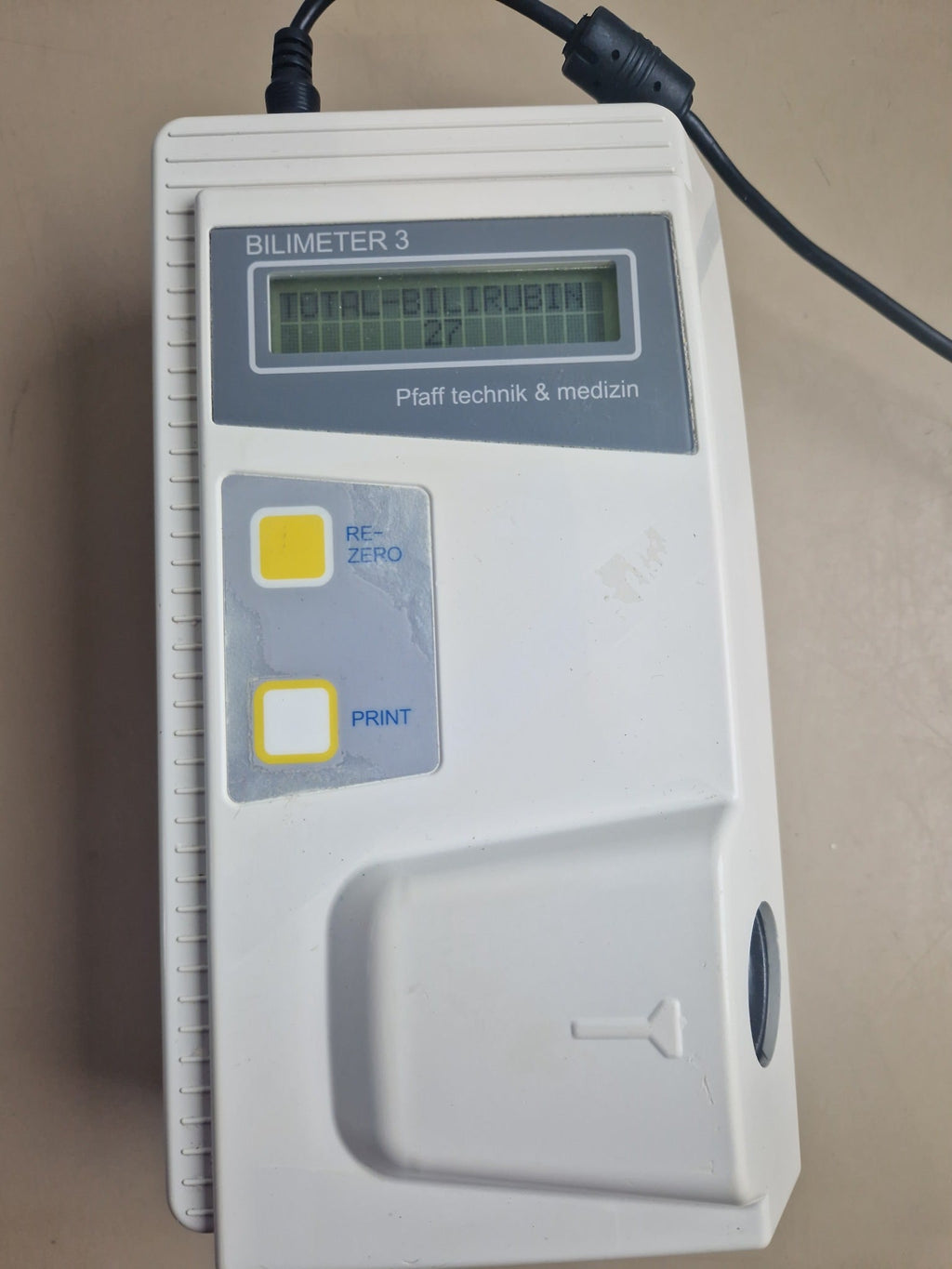

Used condition with normal cosmetic signs of previous use, including light marks and wear to the housing. The unit powers on and the display is operating as shown in the photographs.

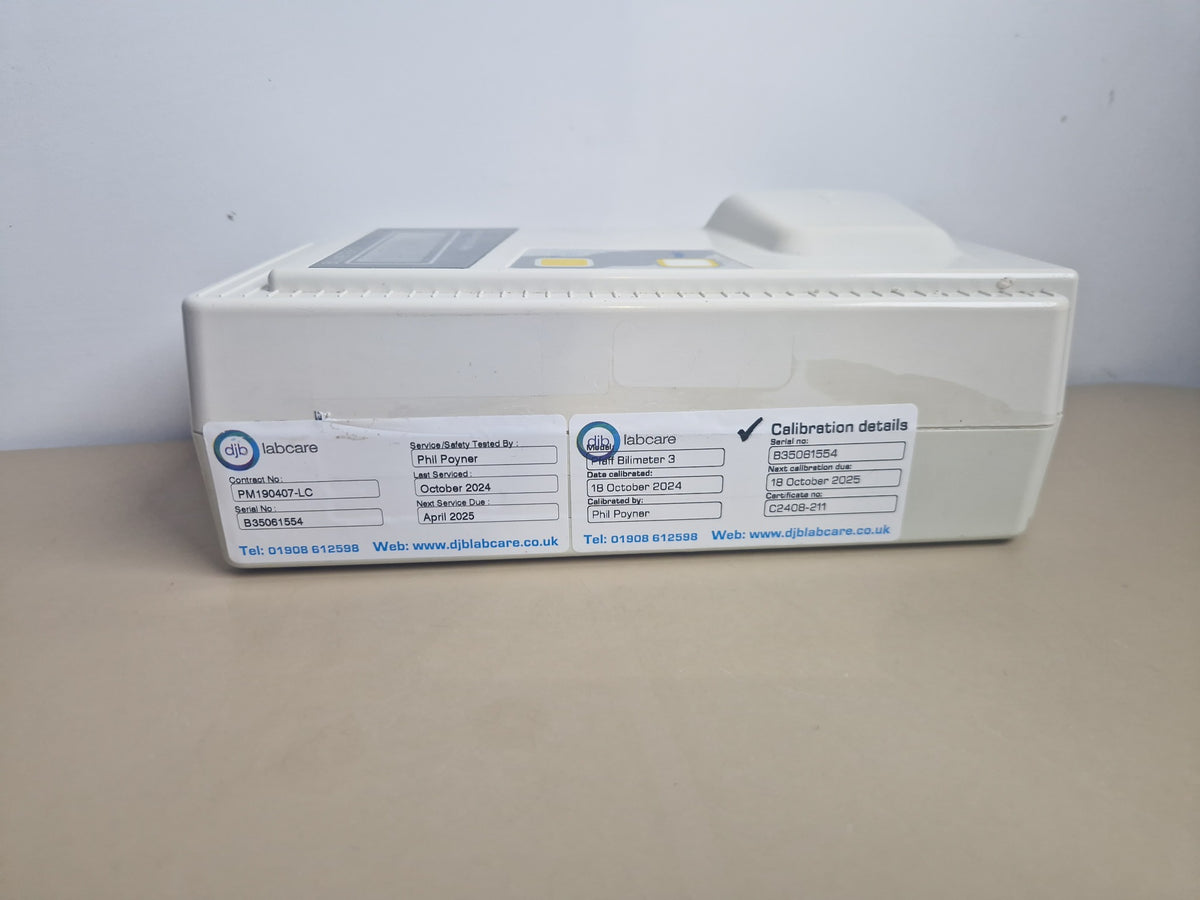

The service/calibration label shows the unit was calibrated on 18 October 2024

Product Details

• Manufacturer: Pfaff Medical GmbH / Pfaff technik & medizin
• Model: Bilimeter 3
• Serial number: B35061554
• Device type: Bilirubinometer / serum bilirubin photometer
• Application: Total bilirubin measurement from prepared serum/plasma capillary samples
• Light source: LED
• Optical system: Two interference filters with haemolysis compensation

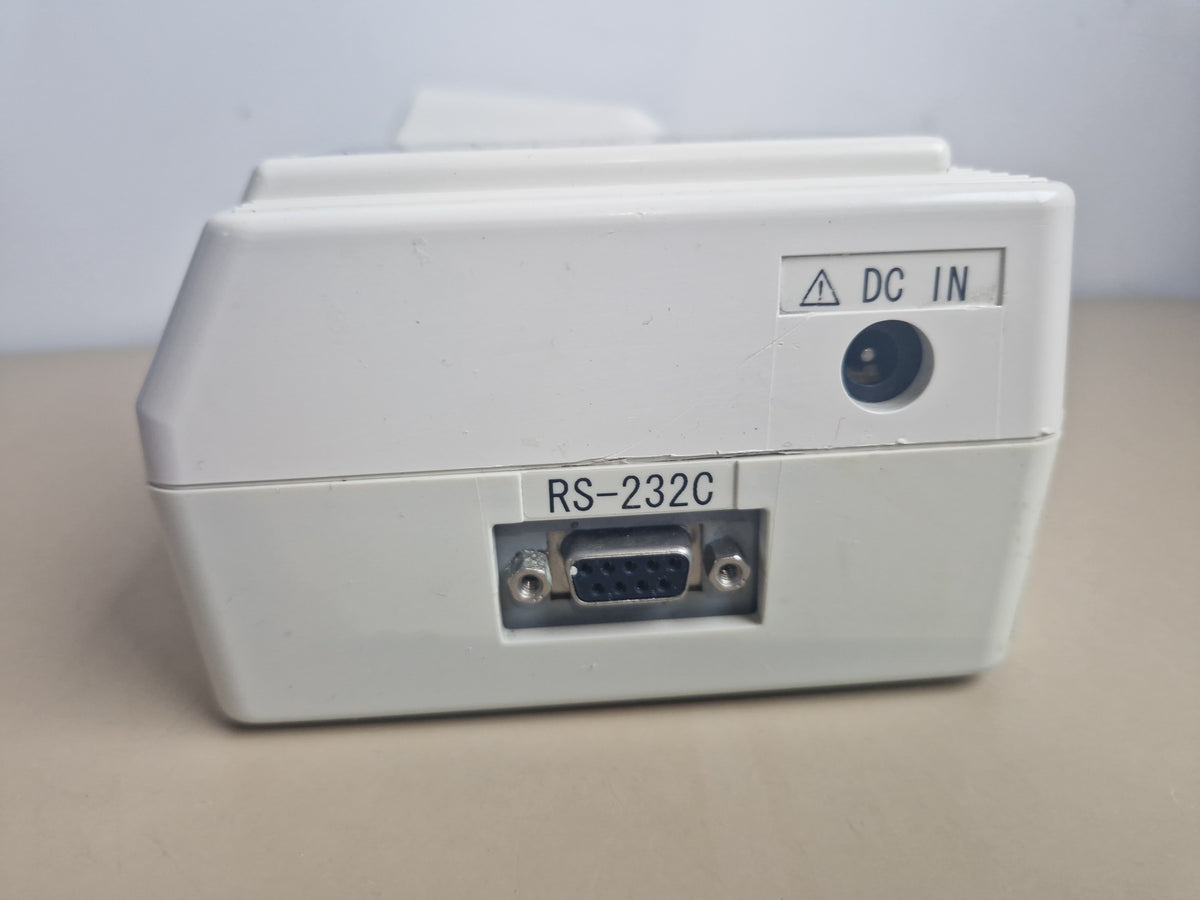

• Interface: RS-232C serial port
• Power input: DC input; supplied with UK mains power adapter

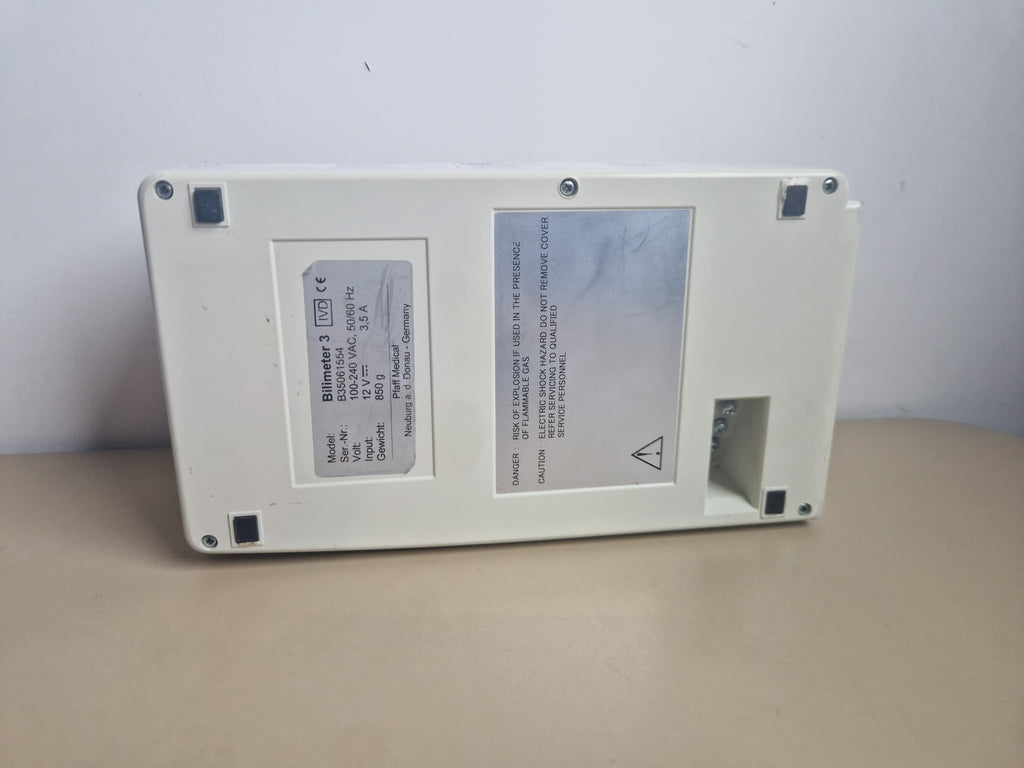

• Markings: CE and IVD markings shown on the manufacturer label

How the Bilimeter 3 Works

The Bilimeter 3 is a compact spectrophotometric bilirubin analyser. A prepared sample is placed into the appropriate sample holder/capillary system and inserted into the measuring chamber. The instrument uses LED illumination and optical filtering to determine bilirubin concentration. The manufacturer describes the Bilimeter 3 as the successor to the Bilimeter 2, with LED technology, no moving parts, improved linearity and haemolysis compensation.

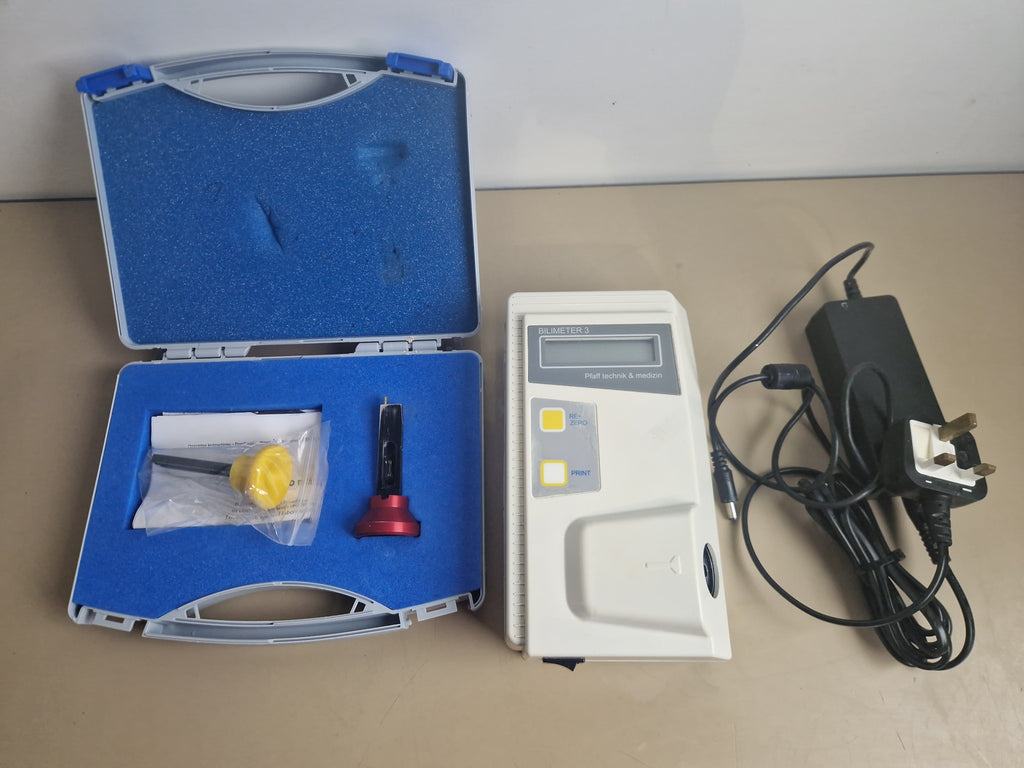

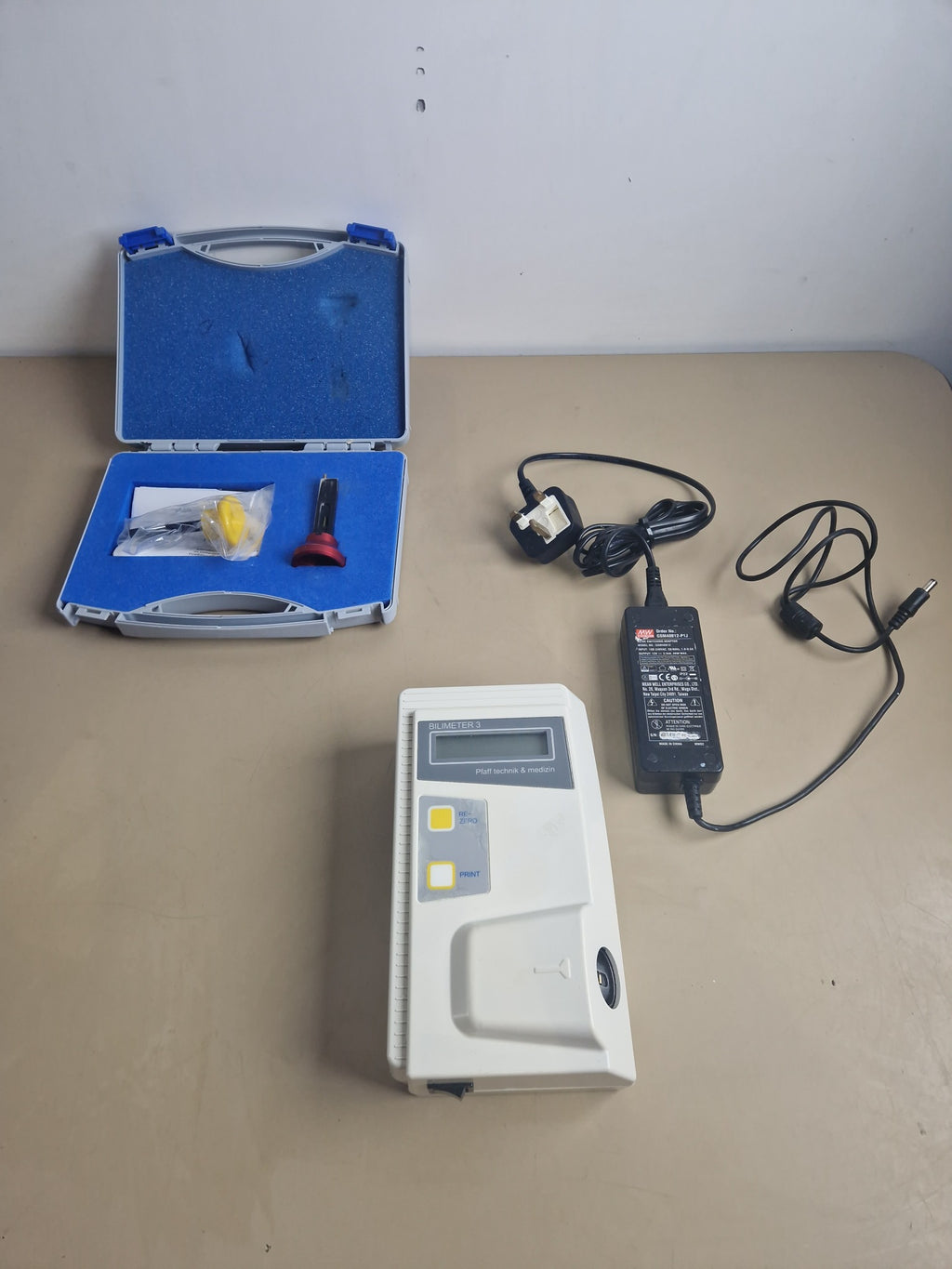

Included

• 1 x Pfaff Medical Bilimeter 3 bilirubinometer

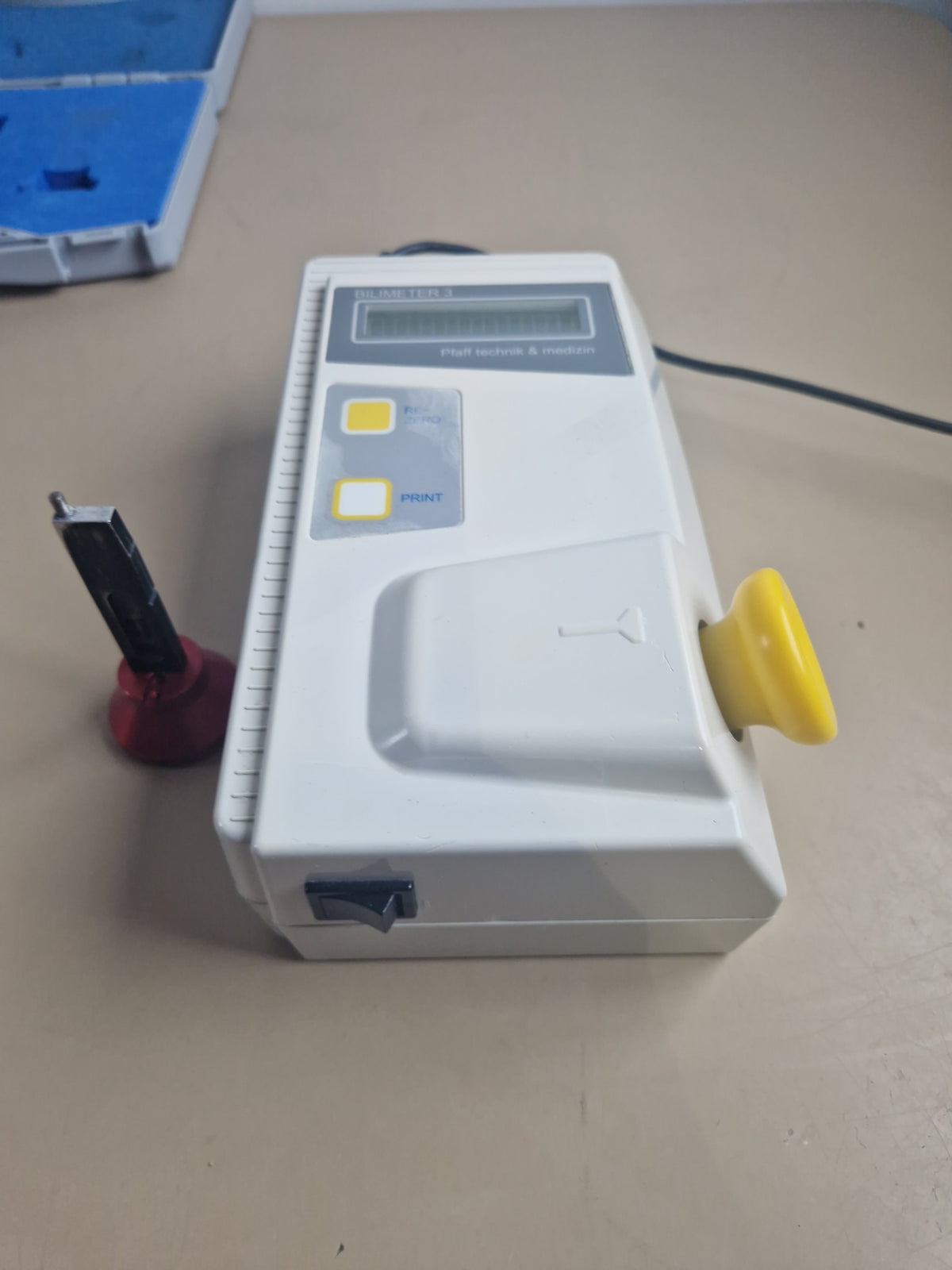

• 1 x Red measuring/sample holder
• 1 x Yellow holder/adapter
• 1 x UK power adapter and mains lead
• 1 x Carrying/storage case with foam insert


Manufacturer Information

Pfaff Medical states that the Bilimeter 3 uses an LED light source, contains no moving parts, uses two built-in interference filters for bilirubin measurement and haemolysis compensation,

Price

£1,299 + shipping

Worldwide shipping can be arranged. Please contact us before purchase if you require a shipping quotation to your destination.

DISCLAIMER

This is pre-owned professional medical/laboratory equipment. Although the unit powers on as shown, the purchaser is responsible for inspection, calibration, quality-control checks, maintenance and confirming suitability for the intended application before use. The previous calibration due date has passed. No claim is made that the unit is currently calibrated for diagnostic use. Please ensure use is carried out by appropriately trained personnel and in accordance with local regulations and the manufacturer's instructions.
