Olympus U-UCD8A Motorized Universal Condenser with U-DP10 U-DPA20 U-DP40 DIC Prisms

Olympus U-UCD8A Motorized Universal Condenser with U-DP10 U-DPA20 U-DP40 DIC Prisms

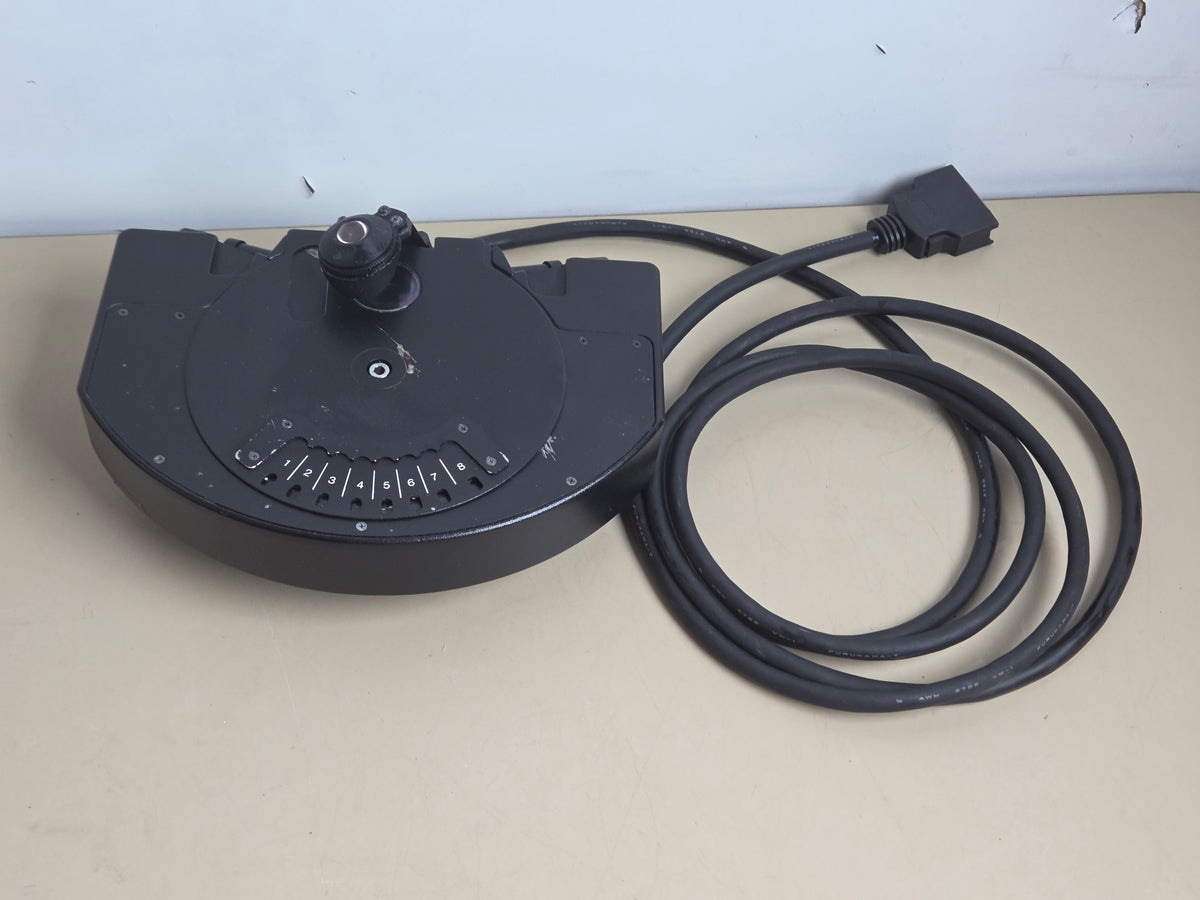

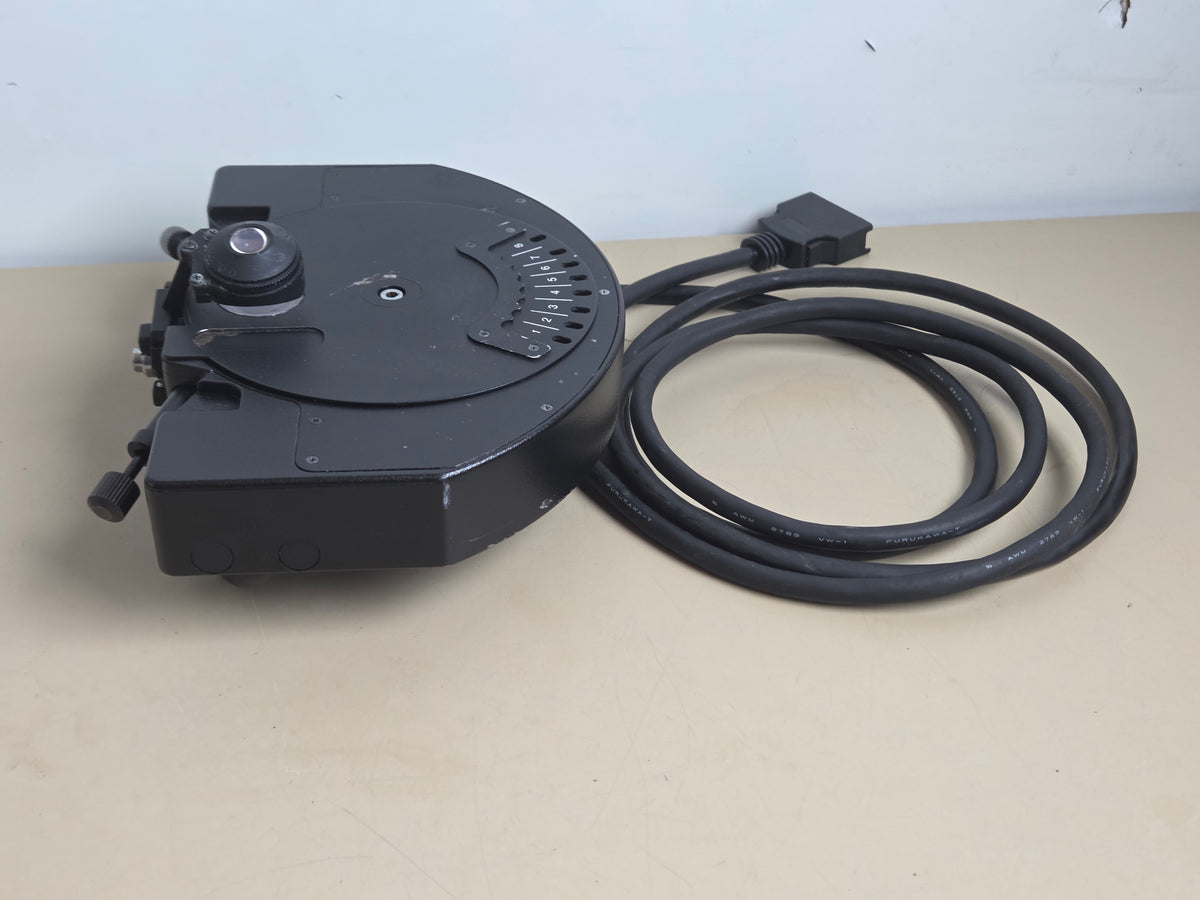

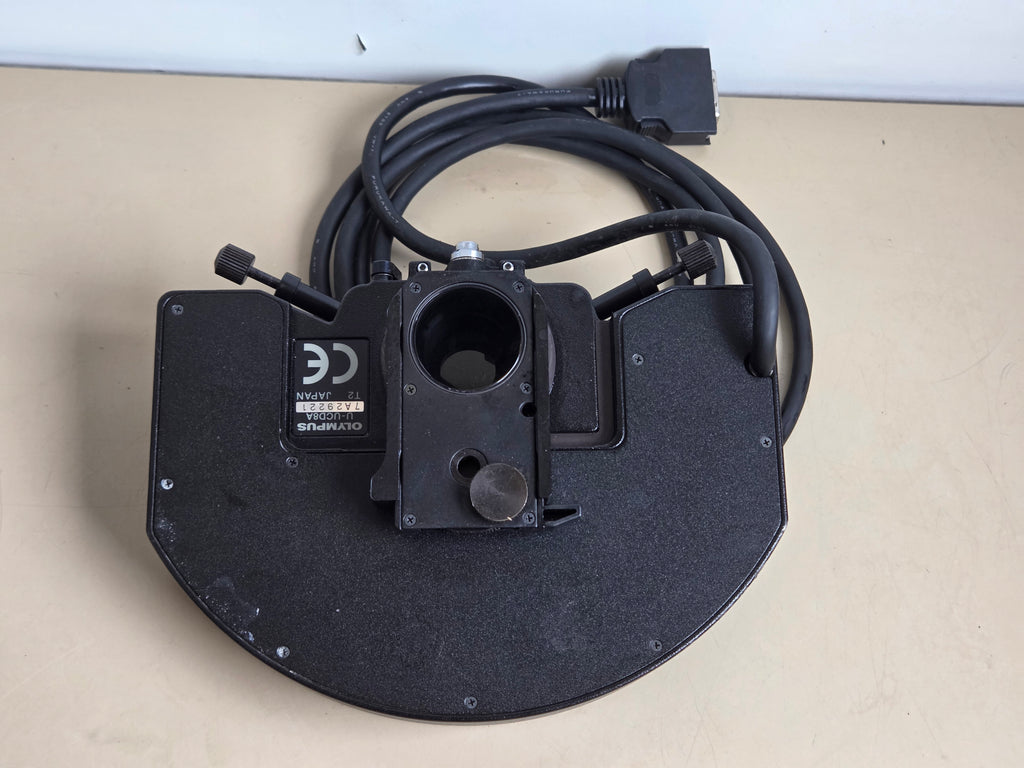

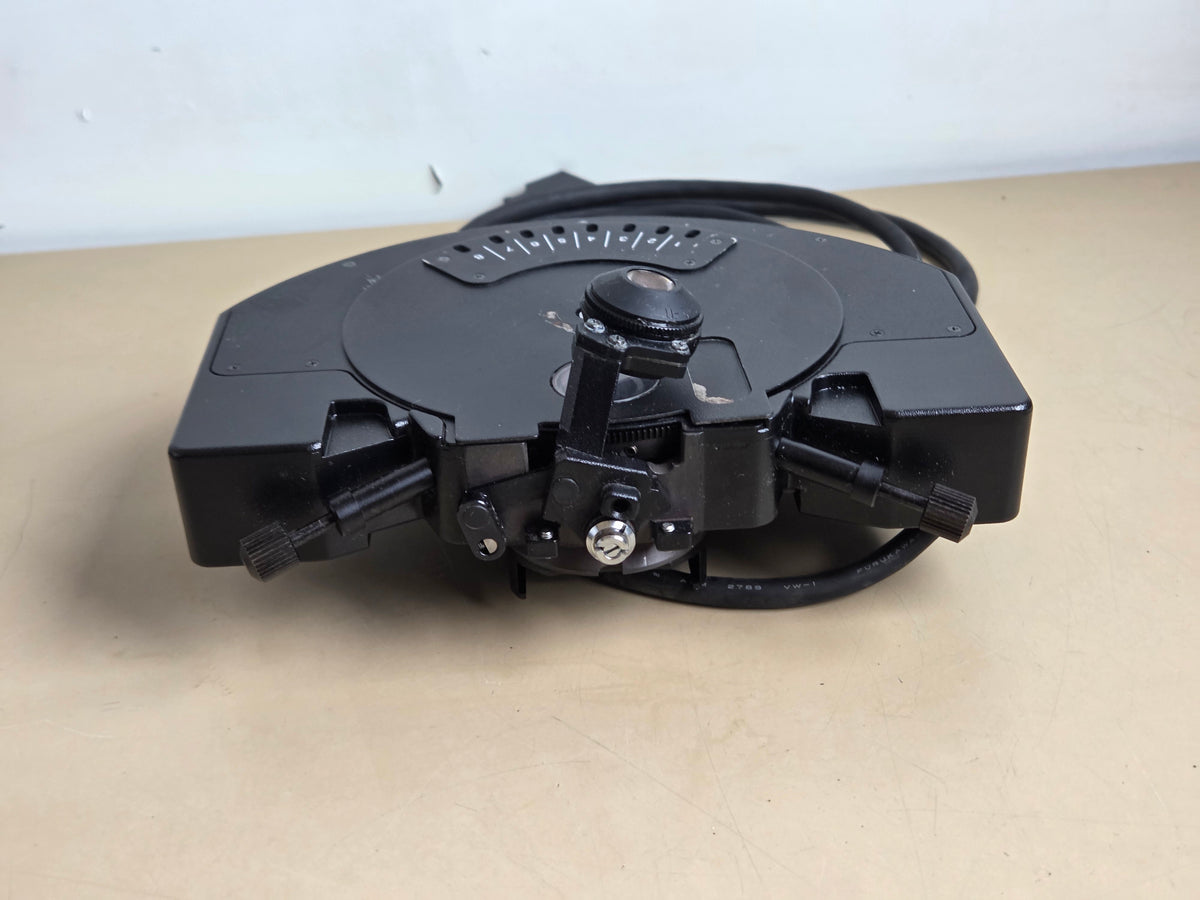

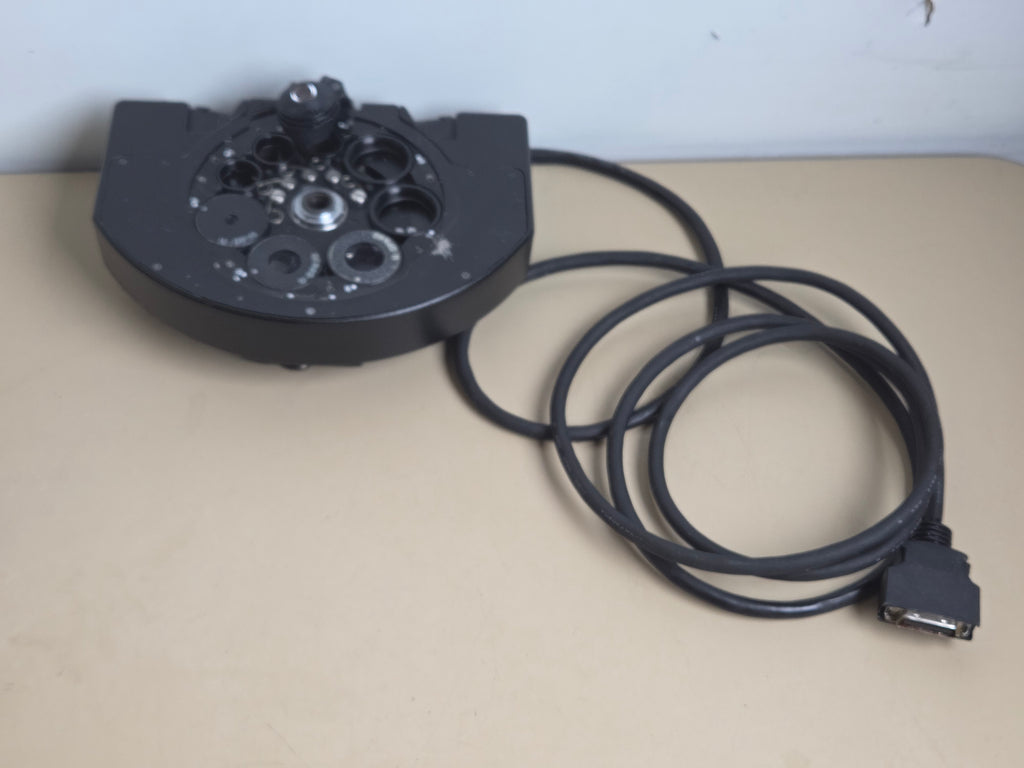

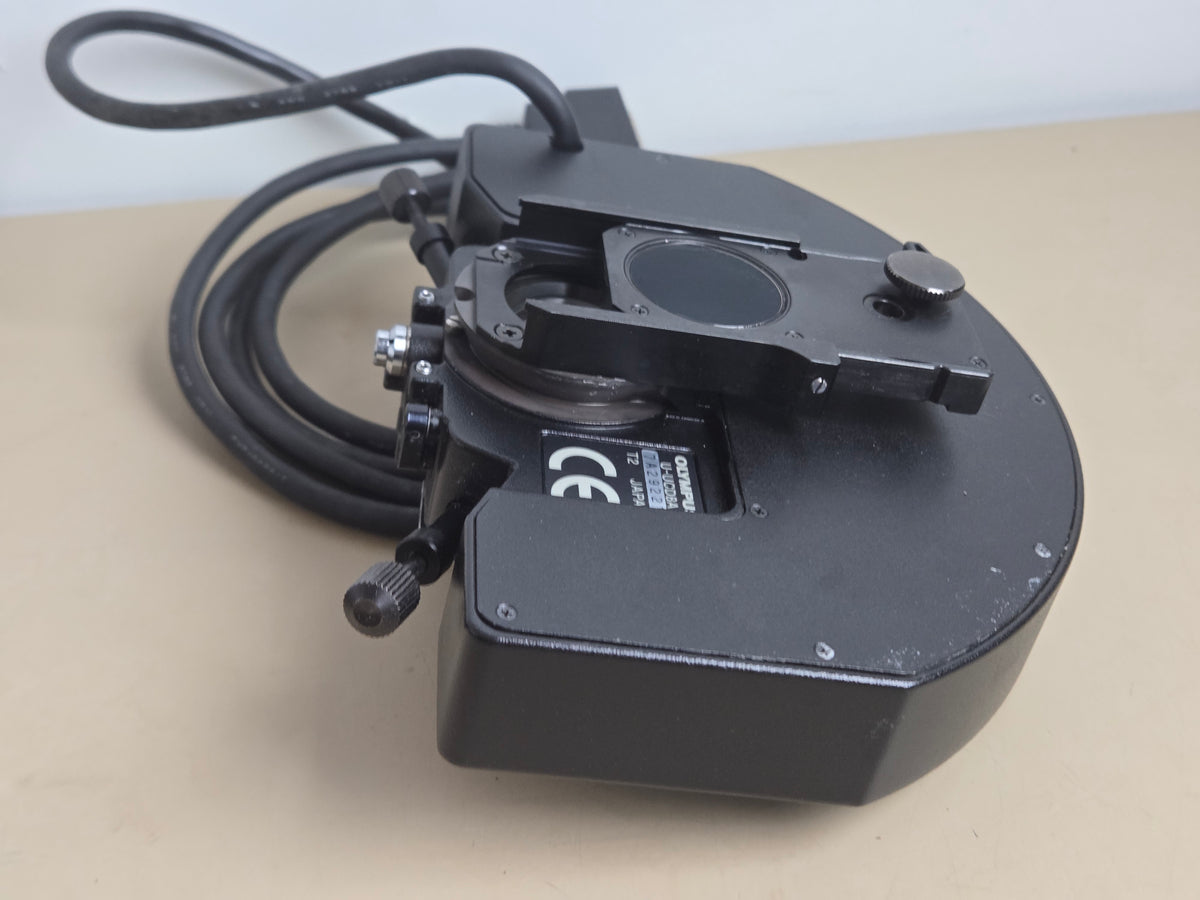

Olympus U-UCD8A motorized universal condenser removed from an Olympus BX61TRF motorized microscope that was in working condition prior to dismantling.

Unlike many U-UCD8A units offered as a bare condenser, this assembly includes three genuine Olympus DIC / Nomarski condenser prisms,

• Brand: Olympus
• Model: U-UCD8A

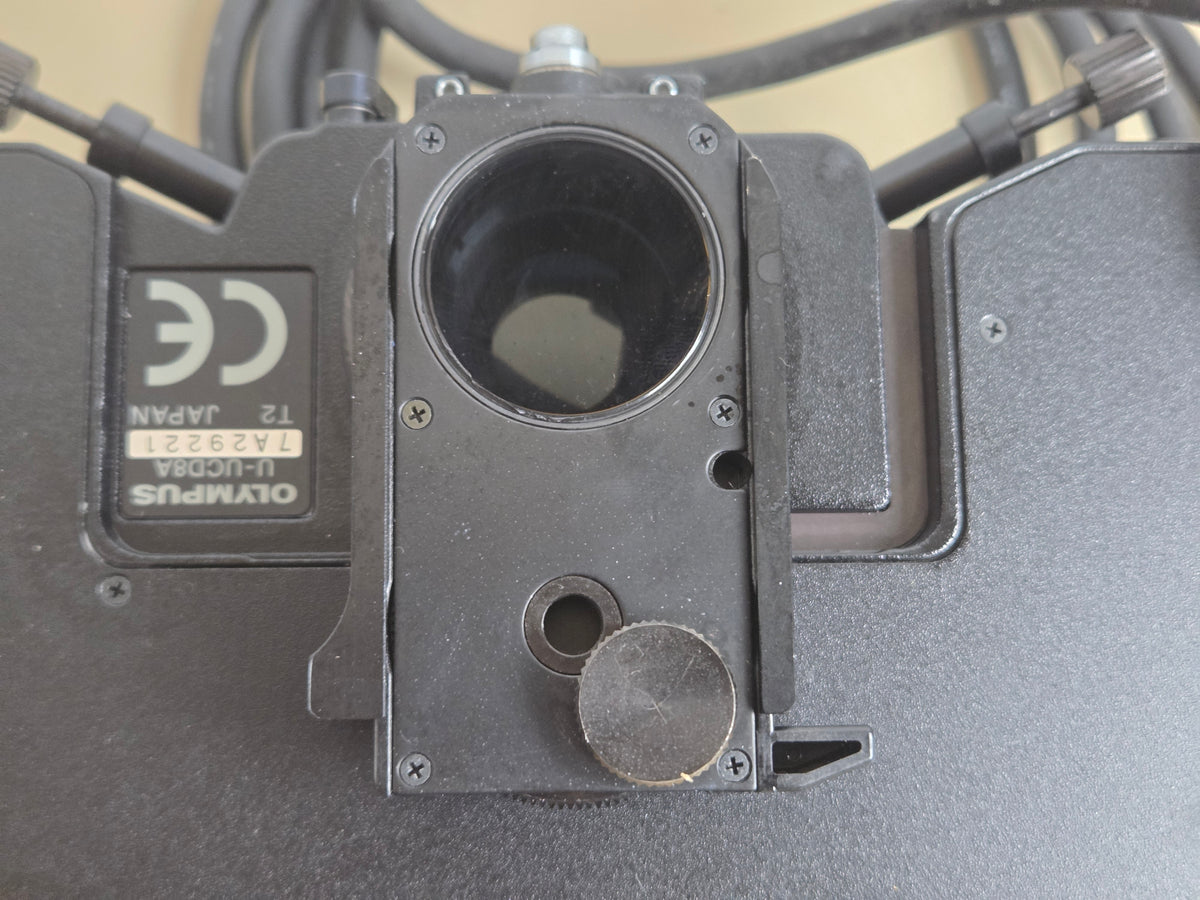

• Serial Number: 7A29221
• Type: Motorized universal achromat/aplanat condenser

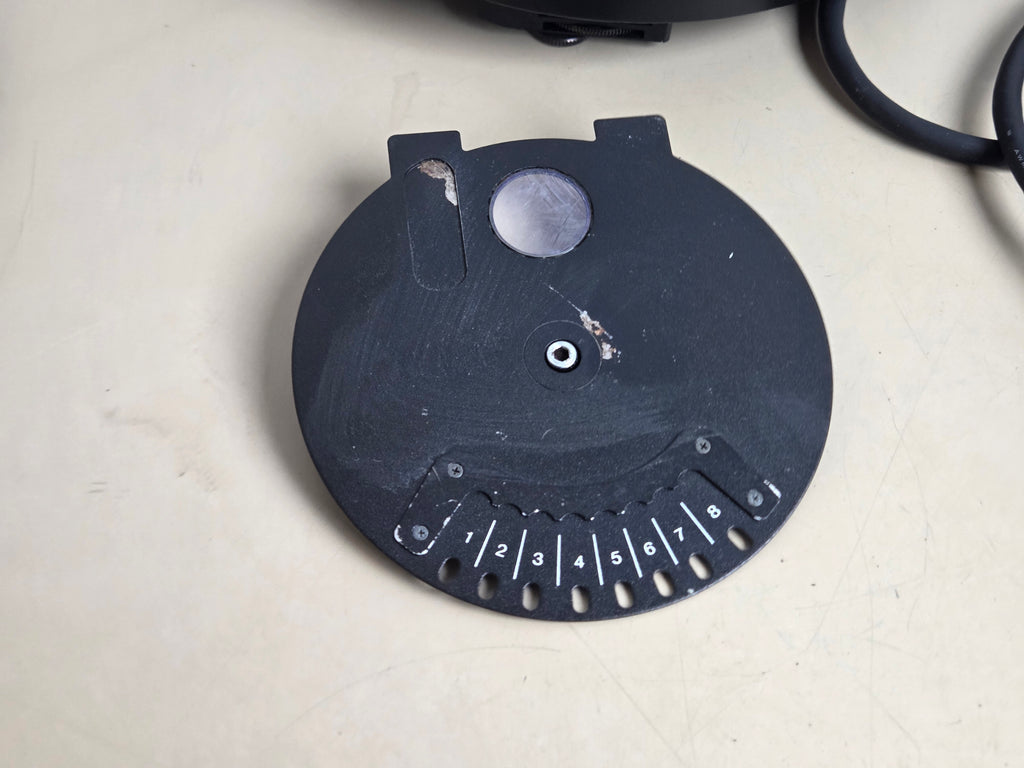

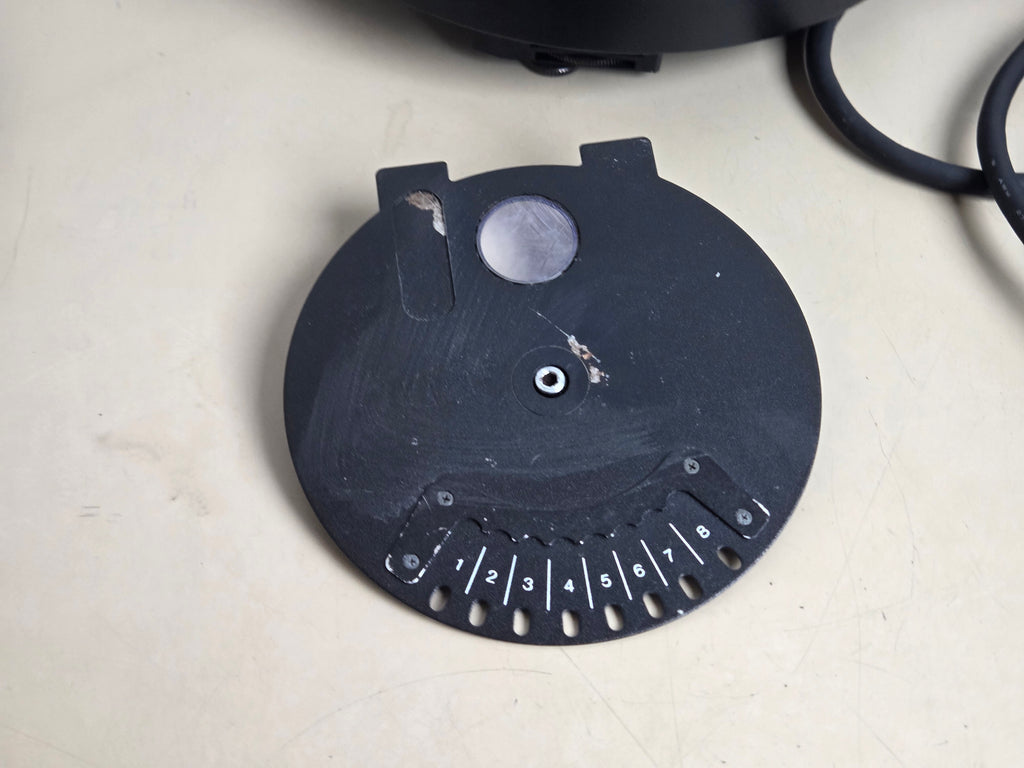

• Turret: 8-position motorized turret
• N.A. range: 1.4–0.2
• Objective range: approximately 2×–100× depending on microscope configuration

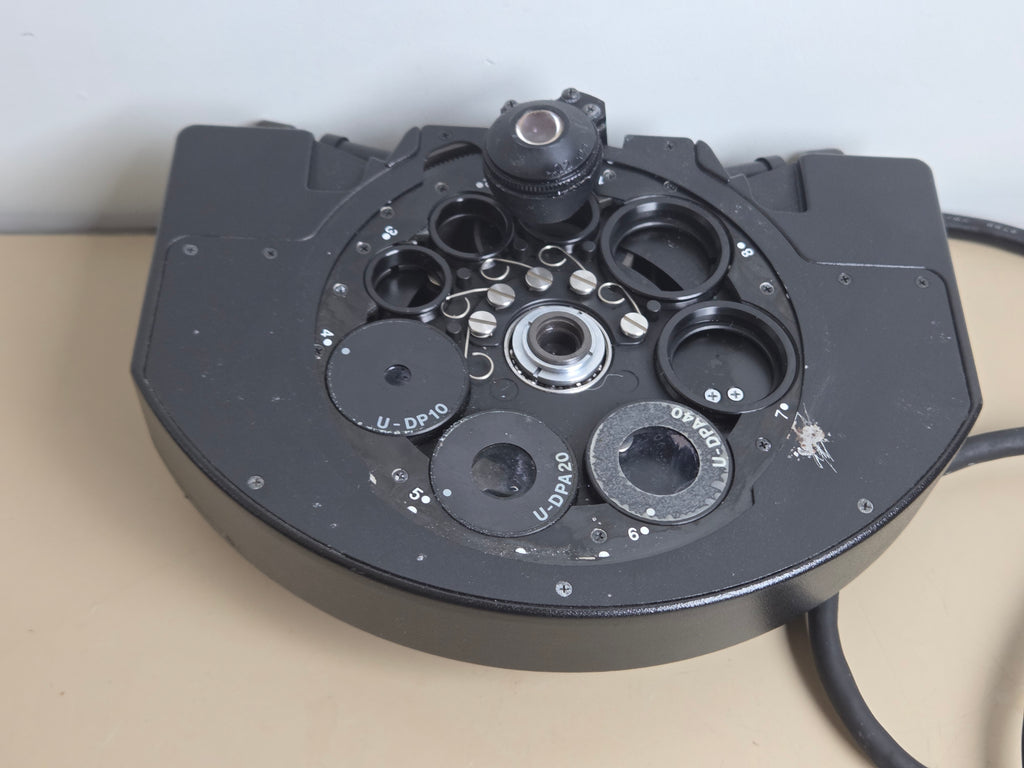

• Included DIC prism: Olympus U-DP10
• Included DIC prism: Olympus U-DPA20
• Included DIC prism: Olympus U-DP40
• Integral Olympus connection cable and multi-pin connector included
• Aperture iris / condenser controls included as photographed
• Quantity: 1 available

The Olympus U-UCD8A was designed as a motorized universal condenser for Olympus BX-series microscope systems, including BX61/BX61TRF configurations. Olympus documentation identifies the U-UCD8A as a motorized universal condenser, and the DIC prism system allows the condenser turret to be configured for differential interference contrast observation with appropriate objectives and microscope components.

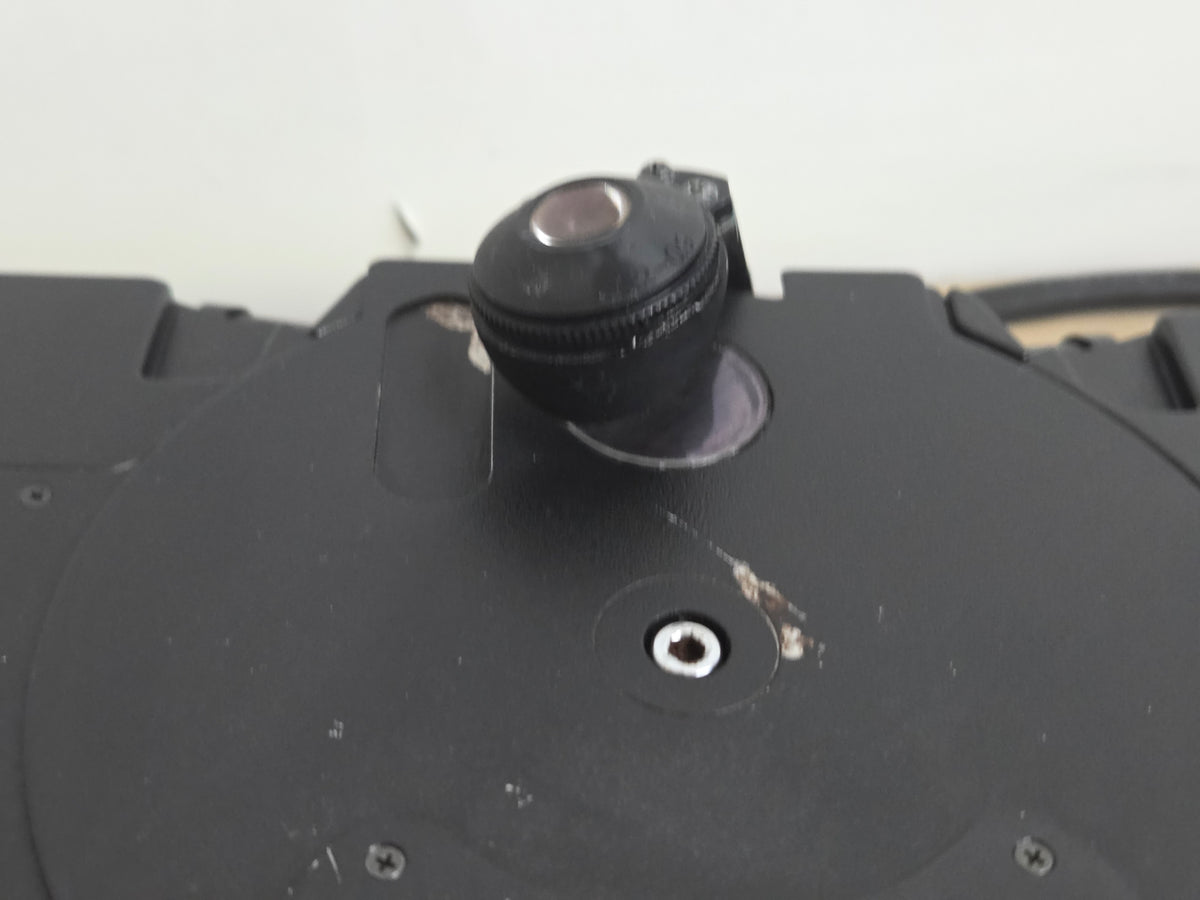

Used condition with cosmetic marks, paint wear and signs of previous laboratory use as clearly shown in the photographs.

This condenser was removed from an Olympus BX61TRF microscope that was operational before dismantling. The condenser has not been independently connected to a BX-UCB controller and electronically bench-tested after removal.

The DIC prisms are physically present as shown. Buyers should inspect the detailed photographs carefully when assessing optical condition.

Included

1 × Olympus U-UCD8A motorized universal condenser
1 × Olympus U-DP10 DIC prism
1 × Olympus U-DPA20 DIC prism
1 × Olympus U-DP40 DIC prism
Integral connection cable

Buyer will receive exactly the same assembly shown in the photographs.

Important compatibility note

This is specialist Olympus microscope equipment. The buyer is responsible for checking compatibility between the condenser, DIC prisms, microscope frame, objectives, DIC slider and controller before purchase. The individual DIC prisms are designed for particular Olympus objective families and magnifications; they should not be assumed compatible with every objective.
