Dräger JM-103 Jaundice Meter Transcutaneous Bilirubinometer + JM-A30 Charger
Dräger JM-103 Jaundice Meter Transcutaneous Bilirubinometer + JM-A30 Charger

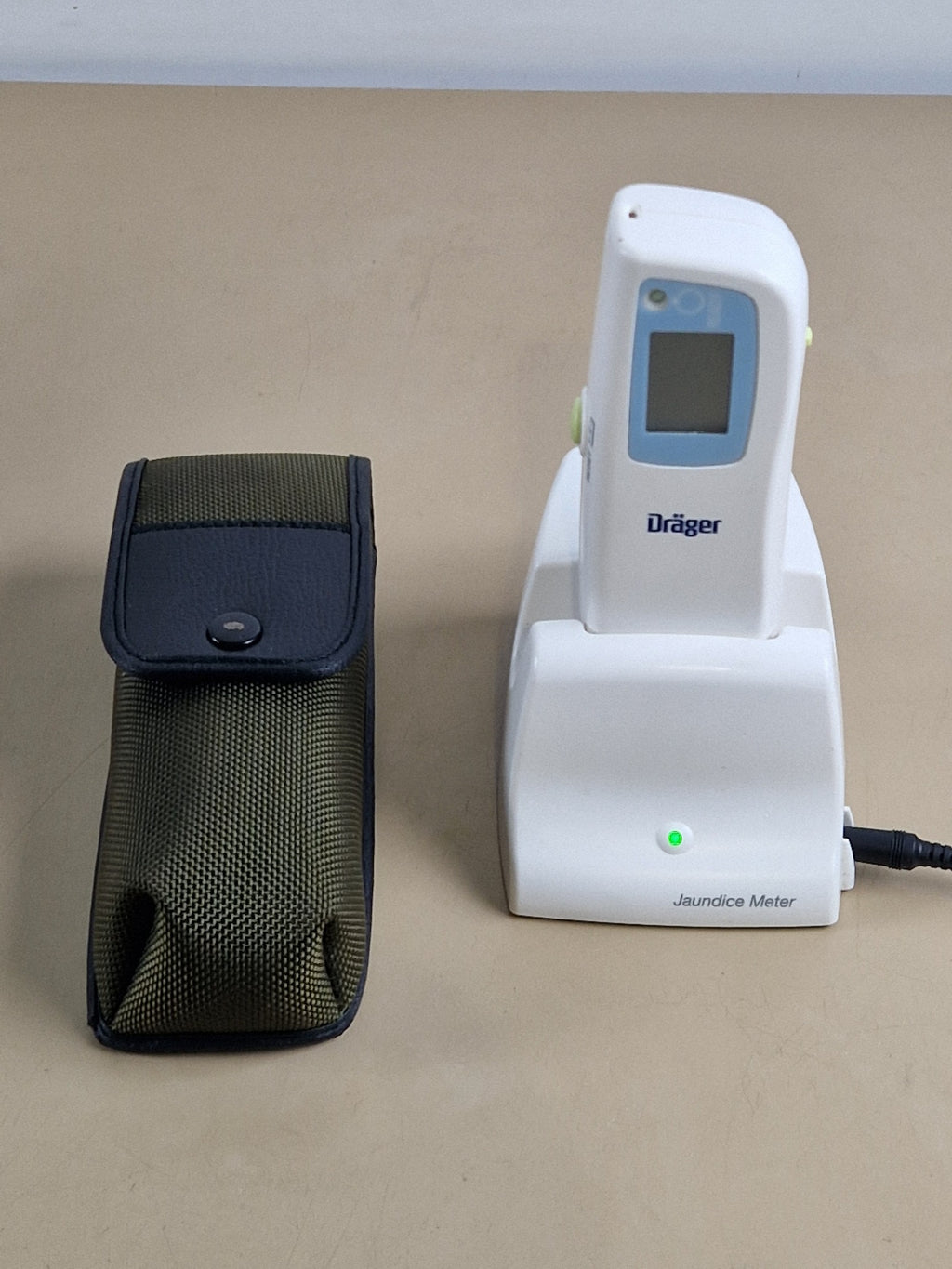

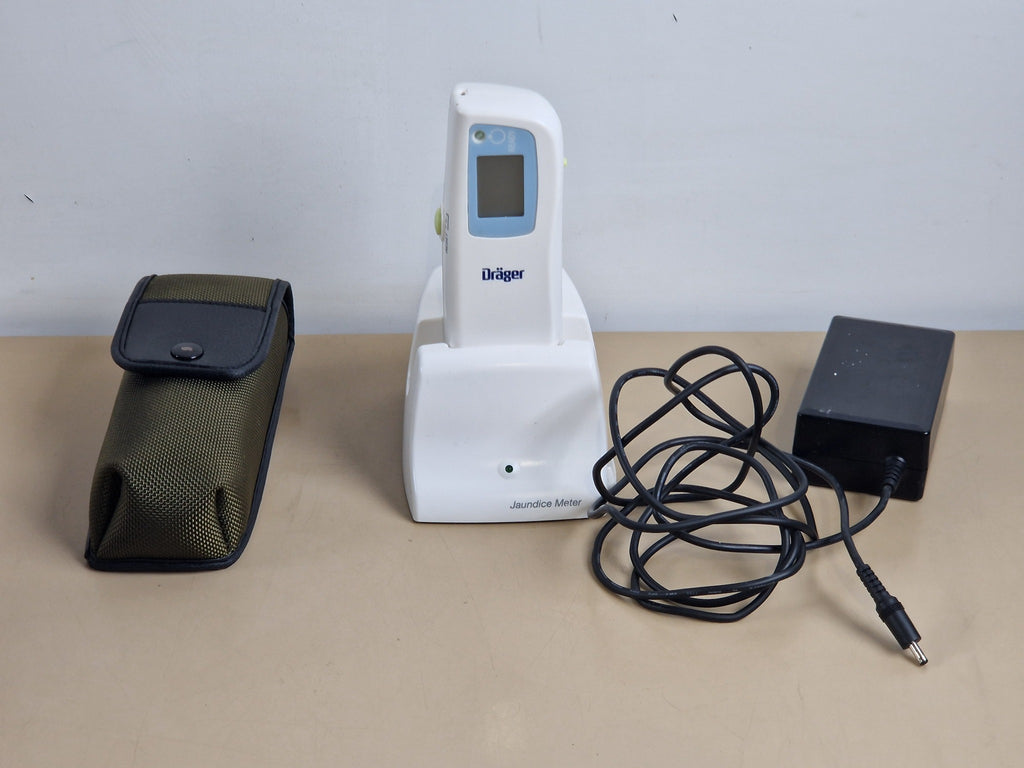

Dräger JM-103 Jaundice Meter / transcutaneous bilirubinometer supplied with JM-A30 charger/checker, AC power adapter and carrying pouch.
The JM-103 is a non-invasive neonatal jaundice screening instrument designed to estimate bilirubin concentration by measuring the yellowness of subcutaneous tissue using two optical paths at different wavelengths.
Included
- Dräger JM-103 Jaundice Meter
- Dräger JM-A30 charger unit with built-in checker/reference plate
- AC power adapter
- Carrying pouch
- Only the items shown in the photographs are included
Key Specifications
- Model: JM-103
- Type: Non-invasive transcutaneous bilirubinometer / jaundice meter
- Measurement range: 0.0–20.0 mg/dL or 0–340 µmol/L
- Clinical data standard error of estimate: ±1.5 mg/dL or ±25.5 µmol/L
- Measuring principle: optical density difference measured using two optical paths / wavelengths
- Light source: Pulse xenon arc lamp
- Light source rated life: approximately 150,000 measurements
- Detectors: Silicon photodiodes
- Power source: Special 2.4 V Ni-MH rechargeable battery
- Minimum measurements when fully charged: approximately 400 single measurements
- Dimensions: approximately 48 mm W × 154 mm H × 32–33 mm D
- Weight: approximately 150 g including battery
- Operating temperature: 10–40 °C
- Operating humidity: 30–95% RH, non-condensing
Charger / Checker
- Charger model: JM-A30
- Charger input: 9 V DC, 500 mA
- Integrated checker/reference plate for routine instrument verification
- Reference values visible under checker lid: L -2.1 ±1.0 / S -1.4 ±1.0

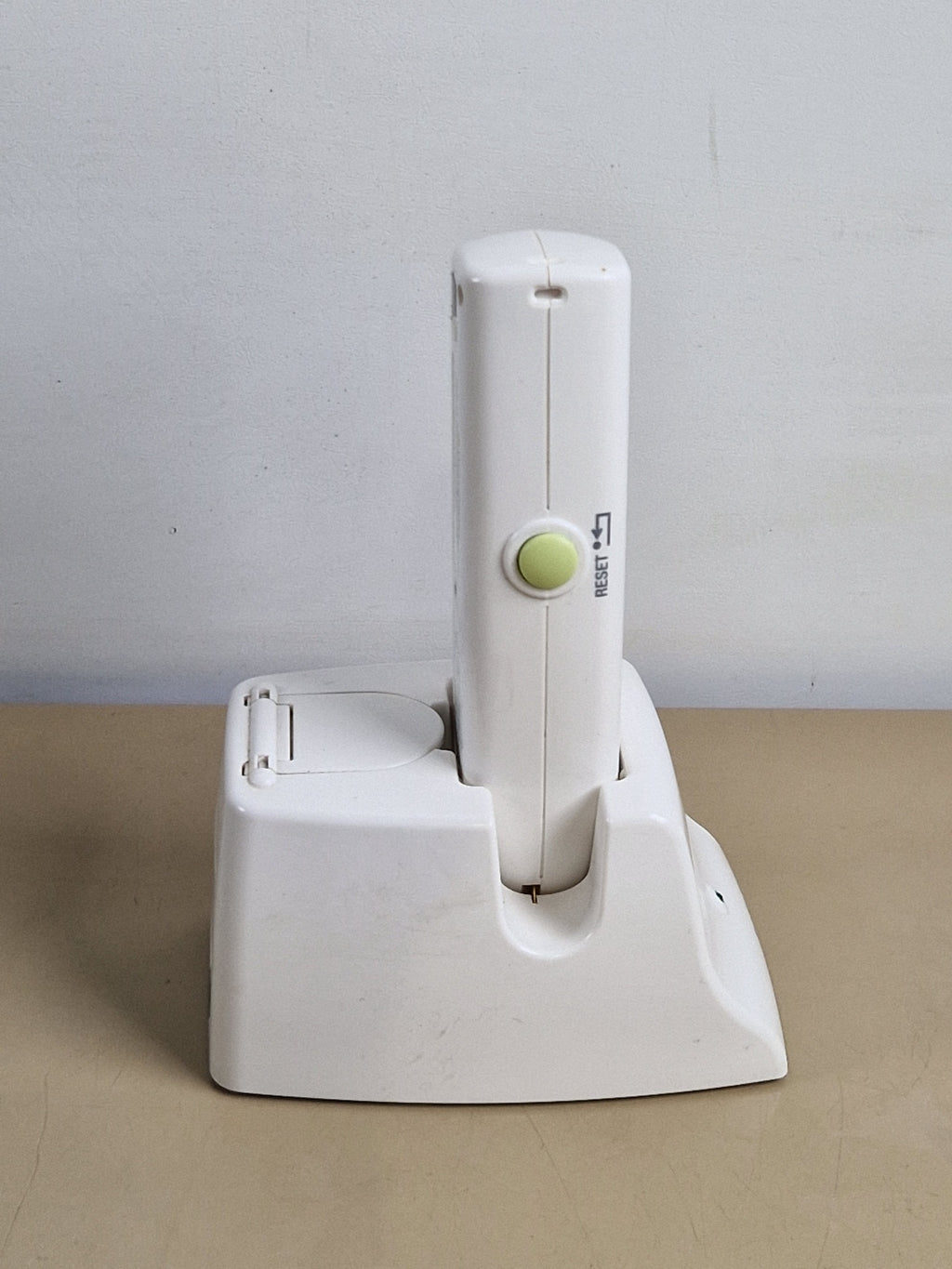

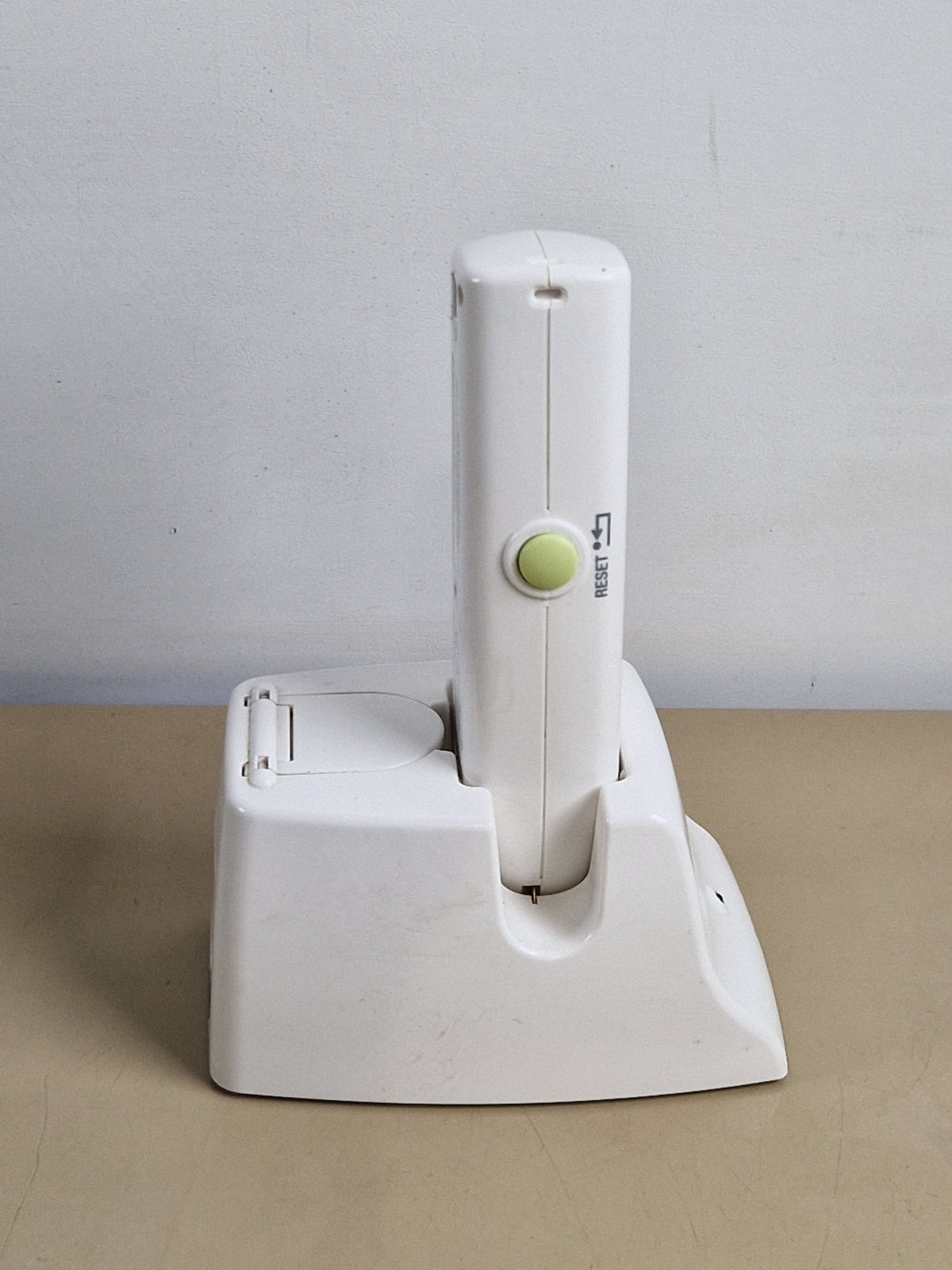

Visible Identification
- JM-103 REF: MU19526
- JM-103 Serial No.: 3205340
- JM-A30 Charger Serial No.: 7065620
- CE marked
- Made in Japan
Condition
Used condition with normal cosmetic marks consistent with previous use. The meter powers on and the display operates, and the charger indicator illuminates as shown in the photographs. The checker/reference plate is present. No current clinical calibration certificate is supplied and we have not independently verified measurement accuracy against a laboratory bilirubin standard.
Important Disclaimer
This is used medical equipment intended for suitably qualified healthcare organisations and professional users. The buyer is responsible for inspection, cleaning, functional verification, calibration/service as required, and confirming suitability before any clinical or patient use. Transcutaneous bilirubin measurements are a screening aid and should be interpreted in accordance with the manufacturer's instructions and appropriate clinical/laboratory assessment.
Price: £999 + shipping.
